6.2L LS Engine Guide: Block Specs, Swap Resources & Build Info

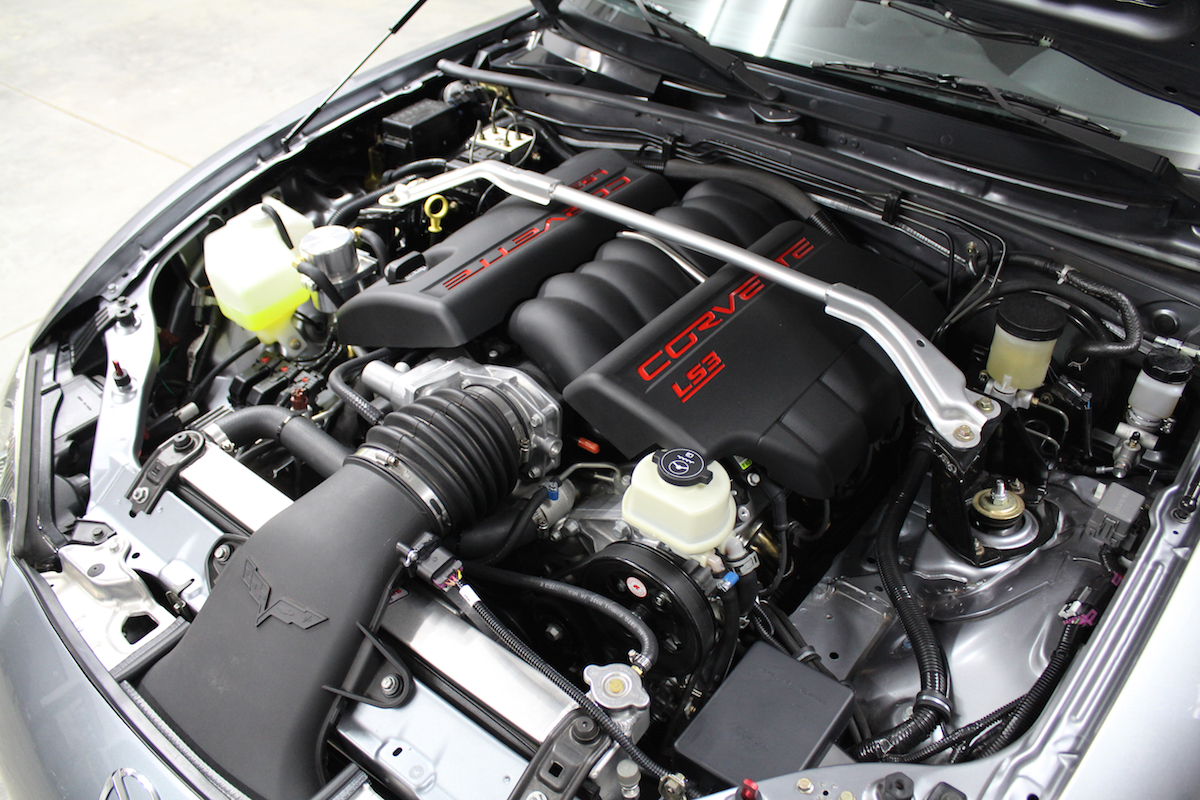

Our pal Tom Tharp wedged a Corvette’s LS3 engine into his Mazda Miata. Start here to watch his entire LS-powered Miata project unfold. (Image/Tom’s Turbo Garage)

Over the course of its 20-plus years of production, the trusty GM LS engine came from the factory in a wide range of displacements, from a humble 4.8L to a rowdy 7.0L. So if you’re thinking about an LS engine swap, LS engine build, or LS engine upgrade, the first number you’ll likely care about is the LS motor’s displacement in liters.

This handy LS resource page is a good one to bookmark if you’re considering an LS crate engine for a swap, or looking for a 6.2L (about 378 cubic inches) LS short block to start a project.

Learn more about each LS engine displacement:
* 4.8L LS Engine Guide: Block Specs, Swap Resources & Build Info
* 5.3L LS Engine Guide: Block Specs, Swap Resources & Build Info
* 5.7L LS Engine Guide: Block Specs, Swap Resources & Build Info
* 6.0L LS Engine Guide: Block Specs, Swap Resources & Build Info
6.2L LS Engine Guide: Block Specs, Swap Resources & Build Info
* 7.0L LS Engine Guide: Block Specs, Swap Resources & Build Info

The 6.2L LS Engine Family

After being introduced as the L92/Vortec 6200 engine in GM’s large SUVs, the 6.2L’s ascension up the horsepower ladder got really interesting when the LS3 arrived on the scene as the base powerplant for the Corvette in 2008. Horsepower climbed even higher when GM decided to supercharge it to create the LSA for the new ZL1 Camaro, then again to create the LS9 for the new Corvette ZR1.

All told, if you need a good foundation for a mega-horsepower build, then the aluminum block 6.2L can probably handle it.

You may also want to check out our Definitive Guide to LS Engine Specs and LS Engine Upgrades.

6.2L LS Engine Specs

Suffice it to say, with such a wide range of 6.2L LS engines out there, it’s critical to know the distinction between each one before you choose an engine for your swap or build. We’ve listed them all in the table below, and we added hyperlinks on each specific LS engine name (L92, LS3, LSA, etc.) that you can click on to learn more.

6.2L LS & Vortec Engine Spec Guide

YearsLiterCodeVehicleCam BoltsReluctorVVTAFMFlex FuelVIN (8th Digit)BlockHead
2007-086.2L92SUV158X/4XYesNoNo8Alum.Rectangle
2010-146.2L92SUV158X/4XYesYesYesFAlum.Rectangle
2010-156.2L99Camaro (auto)158X/4XYesYesNoJAlum.Rectangle
2009-146.2L9HTruck/SUV158X/4XYesNoYes2Alum.Rectangle
2008-176.2LS3Performance Cars158X/4XNoNoNoWAlum.Rectangle
2010-136.2LS3C6 Grand Sport358X/4XNoNoNoWAlum.Rectangle
2008-156.2LSACTS-V, 5th Gen. ZL-1158X/4XNoNoNoPAlum.Rectangle
2009-136.2LS9Corvette ZR-1358X/4XNoNoNoTAlum.Rectangle

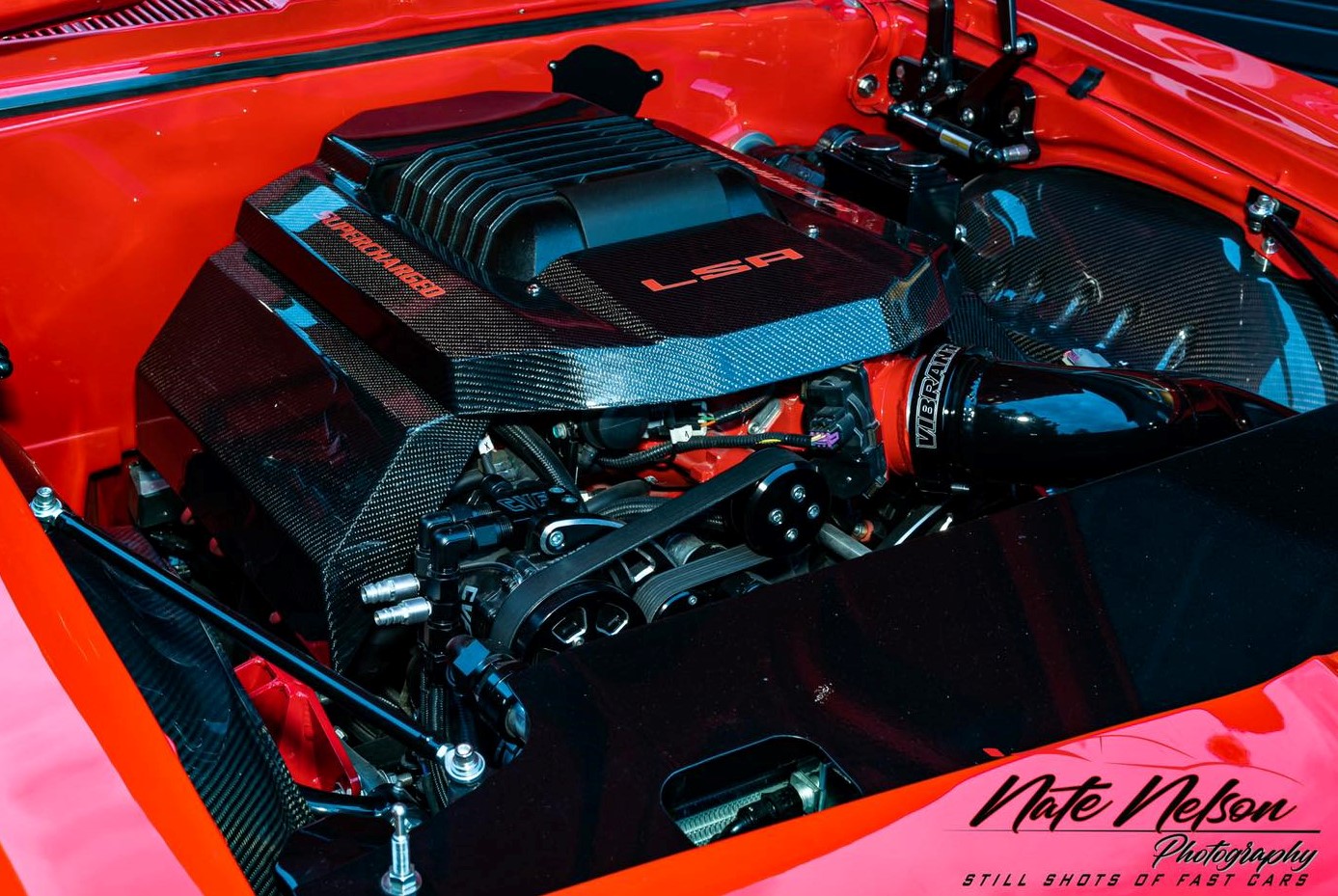

Want to see a slick, custom 1969 Camaro with a supercharged 6.2L LSA under its hood? Of course you do. (Image/Nate Nelson Photography)

Looking for a 6.2L LS Engine?

Here are two LS Engine Spotter’s Guides that will help:

LS Engine Swap Parts Guide

Our friends over at Summit Racing developed a helpful resource that’ll give you an idea of some of the parts you’ll need to complete your LS engine swap—including specific LS swap requirements for exact vehicle models. You can check it out here:

Tags: , , , ,

One Comment

  1. Neil Dawson says:

    I am thinking of swapping the original (high mileage) LS2 in my 2007 Vette (Mar 2007 build) for an LS3 (GM crate engine approximately 480-500hp), 6spd manual Z51 coupe. Just wondering what unforeseen probs I might encounter…ECM programming, clutch, etc. Have also replaced the rad with a Dewitt ‘Direct Replacement’ which also hooked to the stock oil & trans cooler and has much better cooling.
