Even though it’s a GM LS world, the Gen 1 small block Chevy remains a popular choice for many builders. We’re going to show you how to build a 422 cubic inch stroker small block that makes 700-plus horsepower that even an LS guy will respect. Even better, the majority of the parts are off-the-shelf items. Here are the major components:

In Part One, we’ll go into block prep, the rotating assembly, and installing the camshaft and belt drive.

You can skip ahead to Part 2 here: 422 Cubes of Small Block Thunder, Part 2: Oiling System, Valvetrain & Induction

Block Prep

Our Trick Flow cylinder heads require a minimum bore size of 4.155 inches to maintain adequate valve-to-block deck clearance, so we opted for the Dart SHP Pro block with a 4.165 inch bore. Block machining was performed by Scott Gressman of Gressman Powersports. The Dart block comes with 9.027 inch deck height; Scott milled them to a finished height of 9.001 inches to achieve zero deck with the pistons at TDC.

The cylinder bores were CNC-milled with a carbide cutter to an initial 4.160 inches. The tops of the bores were lightly chamfered to eliminate sharp edges for easier piston and ring installation. The bores were then honed to 4.1642 inches to allow piston-to-wall clearance of 0.0055 inch with torque plates installed. Four light passes with 500-grit stones and plateau honing brushes created a uniform cylinder wall finish, minimizing microscopic peaks and valleys for superior oil retention and faster piston ring seating.

The Dart block’s lifter bores measured 0.9040 inch. Our .9038 inch solid roller lifters require 0.0015 to 0.0018 inch of oil clearance, so Scott milled the bores to .9054 inch to achieve oil clearance of 0.0016 inch.

I checked all threaded holes to verify they were tapped deep enough. One hole at the front had to be tapped an extra two threads to allow the threaded plug to seat and avoid contacting the timing cover. I also carefully deburred the bottom edges of the cylinder bores to eliminate sharp edges. This helps avoid scratching the piston skirts and eliminates potential stress riser areas.

The block was initially cleaned in a jet wash, followed by a very hot water and Dawn dishwashing liquid bath. All oil passages, lifter bores, and cylinder bores were washed using appropriately sized brushes followed by repeated rinsing and blowing with compressed air. Once dry, exposed machine surfaces were lightly coated with WD-40 to prevent surface oxidation. All machined surfaces were carefully masked and the block was painted with SEM self-etching primer and red industrial enamel paint.

Checking Crankshaft & Connecting Rod Clearance

With upper main bearings installed and lightly oiled, the Scat crankshaft was installed and rotated to verify we had no counterweight-to-block clearance issues. Our tightest clearance was a healthy 0.100 inch. The crank was also checked for endplay; ours measured 0.006 inch. Generally speaking, acceptable endplay should be in the 0.004 to 0.008 inch range.

A piston and rod combo was temporarily assembled and installed in one cylinder at a time to check rod big end clearance at the pan rail and upper web areas. We found light contact on the outboard side of each cylinder due to the 3.875 inch crank stroke. The tight spots were relieved using a pneumatic die grinder and a milling bit. Clearance was verified at 0.080 to 0.100 inch.

Balancing the Rotating Assembly

The rotating assembly was balanced at Medina Mountain Motors. Owner Jody Holtrey weighed all components to establish the correct bobweights. In the old days when OEM parts were used, it was standard practice to find the lightest connecting rod and piston to establish a baseline, then grind material from the remaining parts to weight-match the entire set. Today’s aftermarket rods and pistons are so closely weight-matched that little or no correction is necessary. Our Scat H-beam rods had a tolerance range of a mere 0.7 grams, and our Icon pistons had a range of only 0.2 grams. Keep in mind that 1 gram is equal to the weight of a single U.S. currency bill. While no machining was needed, we did mate lighter pistons to the heaver rods, resulting in a close-to-zero tolerance for the set.

With our lightweight pistons and the weight-relieved Scat crank, Jody had to insert a 28 gram slug of tungsten into the front counterweight and a 20 gram slug in the rear. Our final crank balance result was -0.9 grams front and -0.5 grams rear, which is within the ideal range.

Camshaft Installation

Here are specs for our COMP Cams solid roller camshaft:

  • Duration @ 0.050″: 263° intake/272° exhaust
  • Gross valve lift with 1.5:1 rockers: 0.648″ intake/0.645″ exhaust
  • Gross valve lift with 1.6:1 rockers: 0.691″ intake/0.688″ exhaust
  • Intake centerline: 108°
  • Lobe separation: 108°

It’s important to note that our Dart SHP Pro iron block features a big block Chevy cam bore (2.120 inch). The correct cam bearings are provided with the block. These bearings have an anti-friction coating, three oil holes, and a continuous oil groove on the outside diameter. When installing the bearings, make sure that one of the oil holes aligns with the oil feed holes at the upper main saddles. With the bearings installed, the cam was installed to verify fit. We then removed the cam, coated the journals and lobes with Royal Purple Max Tuff assembly lube, and reinstalled it for good.

Rod & Main Bearing Clearance

Using Plastigage to measure bearings may be convenient, but it’s not the most accurate method. We used calibrated micrometers and a bore gauge to determine oil clearances. Oil clearance for both the main and rod bearings was 0.0025 inch. For the rods, I ended up using a standard upper bearing shell and an “X” lower bearing shell to achieve the required clearance. If I had used X bearings all-around, I would have gained an additional 0.001 inch of oil clearance.

Crankshaft Installation

We installed the crankshaft, main bearings, and main caps, then rechecked crank thrust using a dial indicator. Thrust was 0.006 inch and the crankshaft was easily rotated with one hand. If the crank resists turning by hand, carefully recheck to make sure the main caps are in their correct positions and orientation.

The main caps and crankshaft were then removed. The bearings were cleaned and reinstalled in the block and caps with Royal Purple Max Tuff assembly lube on all exposed bearing faces, including the thrust shoulders on the number five rear main bearing.

Our Dart block and Scat crank are set up for a two-piece rear main seal. This build features an external vacuum pump which will pull about 15 inches of vacuum in the crankcase. It’s recommended to use a seal that is specifically designed for high vacuum applications—we used a Fel-Pro rear main seal. The upper and lower seal were installed slightly cocked, with the opposing ends protruding out about 1/8 inch. This allows seal-to-seal mating above and below the main cap to block parting line, helping to insure against a potential oil leak. Prior to installing the rear main cap, a small bead of RTV was applied to the block’s inner corners where the main cap seats against the block.

The crankshaft was carefully placed in the block and the main caps installed. The Dart SHP Pro block is set up for main cap studs. The studs are installed in the block finger-tight and the washers, fine threads, and nut undersides are lubed. Never torque studs into the block; clamping load is achieved as the nuts are tightened. The 7/16 inch main cap fasteners were torqued to 65 ft.-lb. and the 3/8-inch outboard fasteners on number 1 and 5 caps were torqued to 35 ft.-lb. Once the main caps were fully torqued, we checked crankshaft endplay again to verify it was still at 0.006 inch.

Piston & Rod Installation

The rings supplied with our Icon pistons are file-fit with an end gap specification of 0.0187 inch. I used a Summit Racing ring filer to gap the top and secondary rings to 0.019 inch. The filed edges were carefully deburred using a small fine flat file. When filing, don’t get carried away and remove too much material. It’s better to creep up on the desired gap.

The cylinder walls were cleaned with a fast-drying solvent and a lint-free towel, then lubricated with engine assembly lube. Avoid using a synthetic lube on the cylinder walls as it can prevent the piston rings from properly seating during engine break-in. We also applied assembly lube to the ring grooves and rings to provide enough lubrication without making an oily mess during piston installation.

Since our Icon pistons feature a fairly short CD (compression distance), the oil ring groove intersects the wrist pin bore. A support ring is installed at the base of the oil ring groove to provide a stable floor for the oil ring package. The rings have a small male dot that must face down and be positioned directly above one of the pin bores. This dot prevents the support ring from rotating and its end gap from moving into the pin bore area. We installed the rest of the ring package; all end gaps must be clocked 180 degrees from each other to keep them from aligning and allowing oil to get past the rings and into the combustion chambers.

Our Scat rods came with ARP 2000 rod bolts. The specification sheet has specs for two methods of tightening—recommended torque value and maximum allowable bolt stretch. Scat recommends a torque value of 70 ft.-lb., and stretch is not to exceed 0.005 inch. Regardless of method you use, apply quality engine lube to bolt threads and to the underside of the bolt head to reduce friction and prevent galling.

Jesel Belt Drive

With the camshaft and rotating assembly installed, we turned our attention to the Jesel belt drive system. A belt drive offers increased cam timing accuracy and keeps ignition timing stable by minimizing the transfer of crankshaft harmonics to the cam and valvetrain. The Jesel system features a machined aluminum base cover that seals against the block, allowing the belt and sprockets to run exposed. Cam timing adjustments are performed by loosening the four nuts on the spider gear. Turn the crankshaft clockwise to retard the camshaft or counterclockwise to advance. Each mark on the spider gear equals two degrees at the crankshaft.

The mounting plate should be test-fitted to verify it mates flush with the block. During our build, two of the 3/8 inch NPT plugs at the front of the block protruded a bit and hit the plate. I shaved the plug faces down 0.040-inch on a lathe to gain the needed clearance. The mounting plate is secured to the block using an OEM-type gasket, a thin layer of RTV, and ten 1/4-20 socket head cap screws included with the kit. An alternative is to install ARP studs, P/N ARP-334-1401. They have guides for mounting plate positioning that makes installation easier.

The Jesel drive comes with three camshaft thrust shims. With all three installed, we checked camshaft endplay with a dial indicator that contacts the face of the camshaft adapter. You want to prevent the camshaft from thrusting front-to-rear to prevent the lifter rollers from side loading on their roller bearings. With our roller camshaft, we wanted endplay between 0.006 and 0.012-inch. I ended up using the 0.015 and 0.020 inch-thick shims to get 0.006 inch of endplay.

Harmonic Balancer Installation

I chose a Fluidampr 6.25 inch balancer. The crank snout has a 1.2465 inch O.D. and our Fluidampr bore measured 1.2445 inch, providing us with a very nice 0.002 inch press fit. Always measure as it’s possible that the crank snout and/or balancer bore may cause fitment issues, and you don’t want to resort to the Big Hammer to beat the balancer on the crank.

Next Up

In Part Two, we’ll degree the camshaft and install the Moroso oil pump and oil pan, the Trick Flow Ultra 18 250 aluminum cylinder heads and valvetrain, and Dart single plane intake manifold and Holley Ultra XP 850 CFM carburetor. It’s gonna be great!

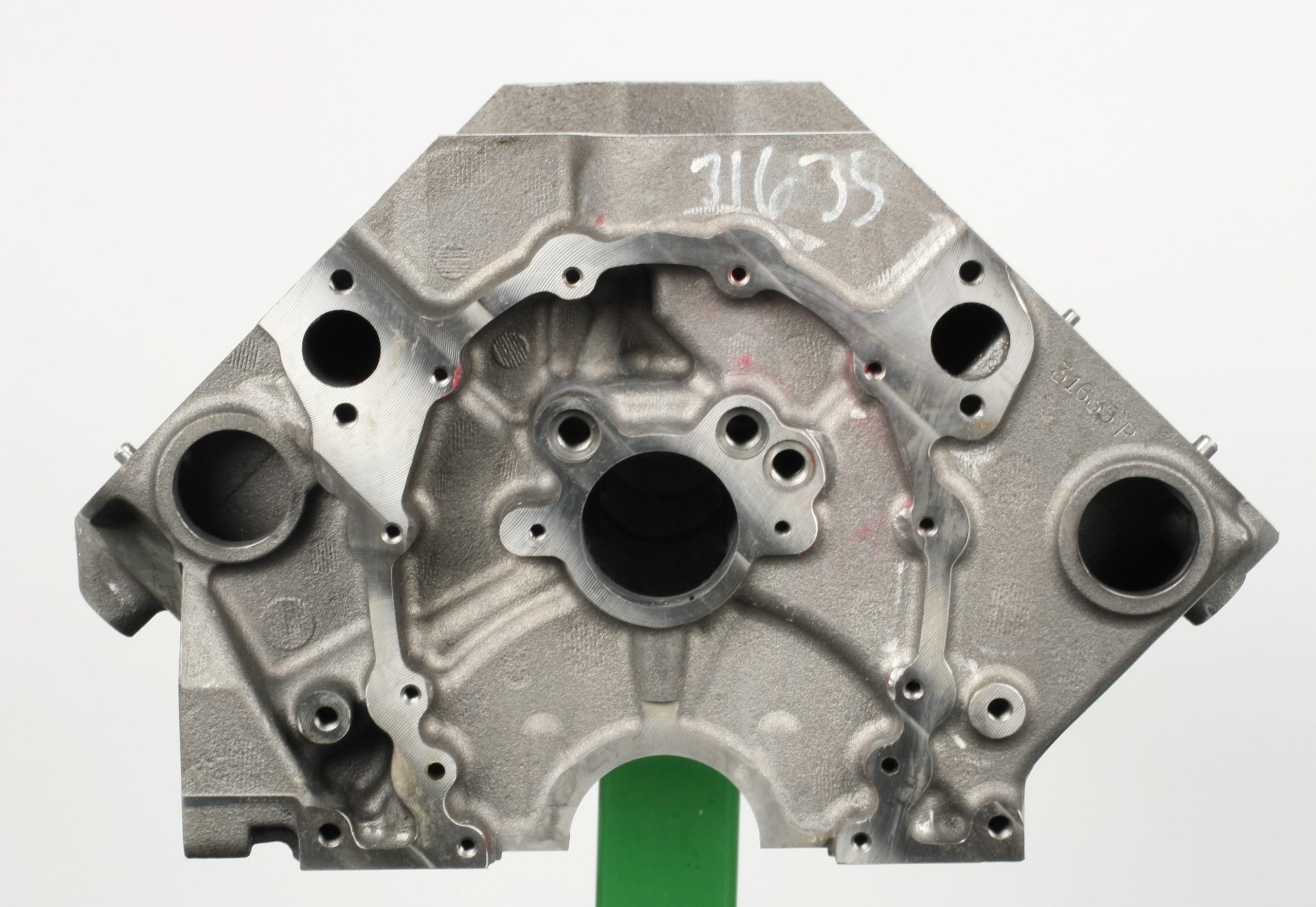

My block of choice for this build is Dart’s SHP Pro iron block. It is a vast improvement over the original Chevy design in terms of strength, oil delivery and accommodation for increased bore and stroke. I chose the 350-sized mains to reduce rotating mass. (Image/Mike Mavrigian)

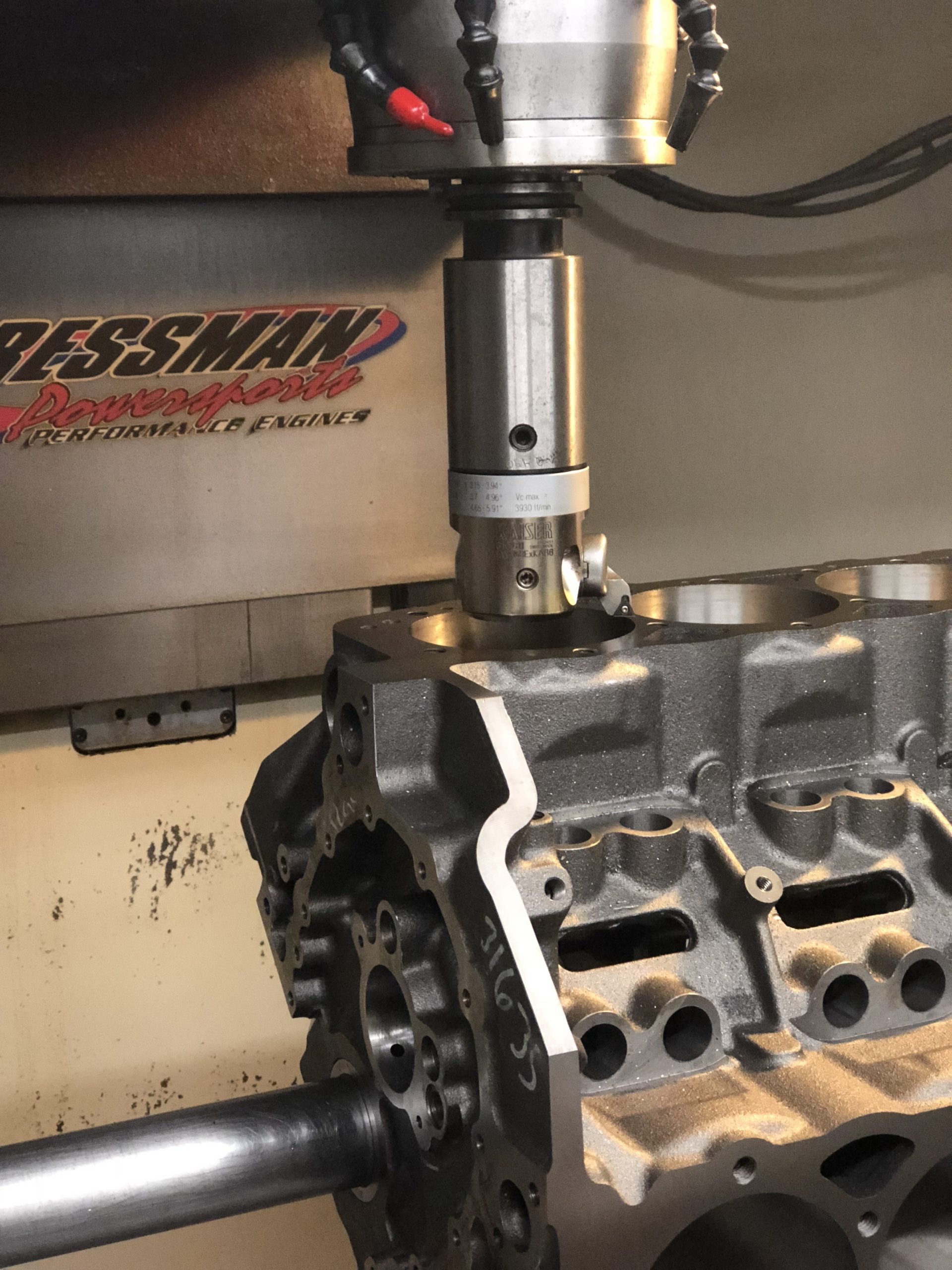

Our block was finish-machined at Gressman Powersports in Fremont, Ohio. During initial inspection, the CNC digital probe measures the block’s main bore centerline, establishing a precise reference. The digital probe measures the raw cylinder bores to obtain the true centerline and reveal any off-center tolerance. This helps find the precise bore center during milling. (Image/Mike Mavrigian)
Decks were cut to a height of 9.001″ at slow speed with a carbide cutter. With decks cut to height and squared, the bores were initially cut to 4.150″, followed by a second cut to 4.1587″. That left 0.0055″ for honing. (Image/Mike Mavrigian)

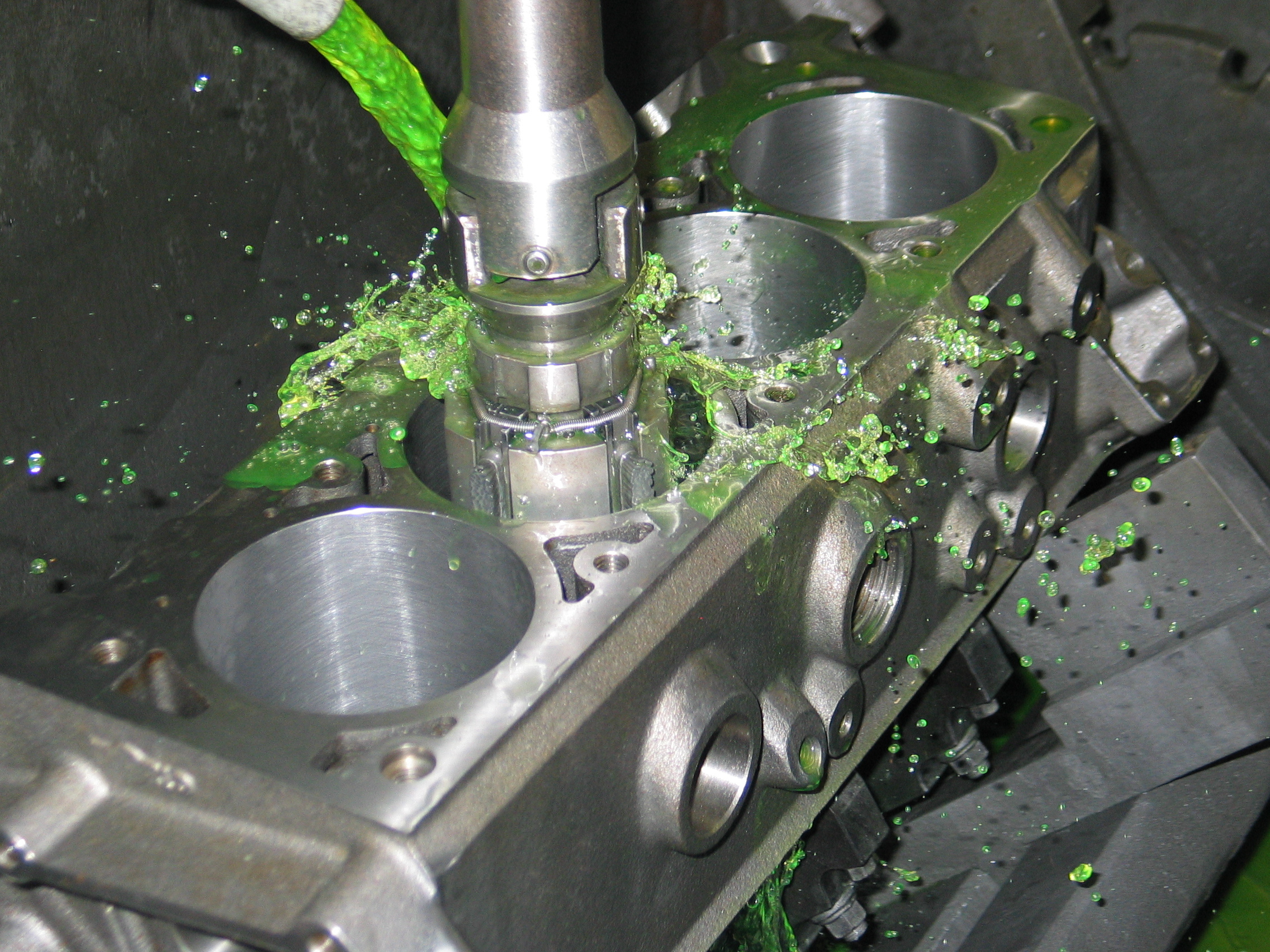

With torque plates in place to simulate the bore distortion caused by bolting on the cylinder heads, the cylinders are final-honed to size followed by a single pass with plateau brushes to provide better ring seating. Our finished bores measured 4.1642″, providing 0.0055″ of piston-to-cylinder wall clearance. (Image/Mike Mavrigian)
The forged lightweight Scat crank features a 3.875″ stroke and 2.100″ rod journals. The counterweights are radiused at the leading edges for more efficient dispersion of parasitic drag due to oil clinging to the crank. (Image/Mike Mavrigian)

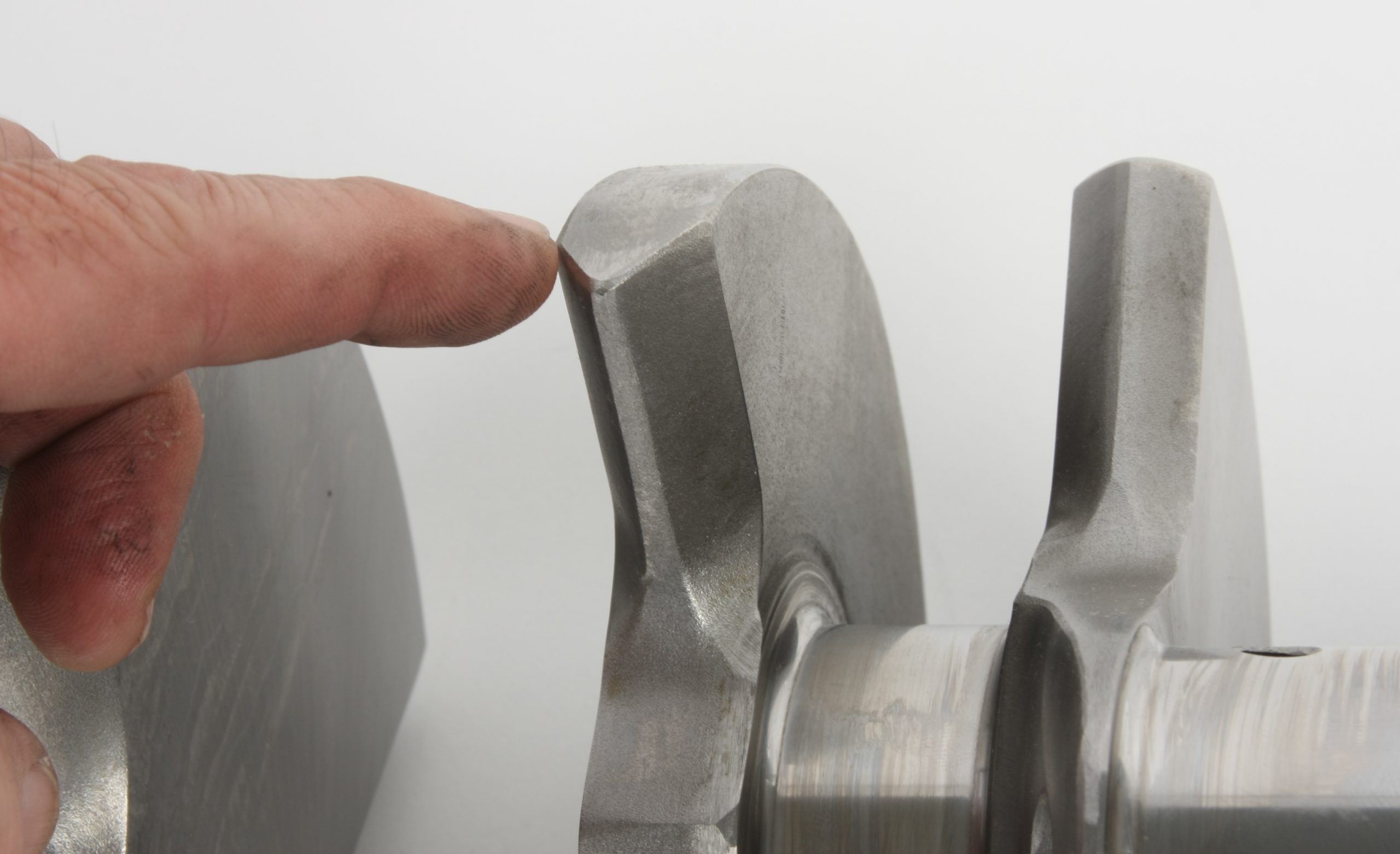

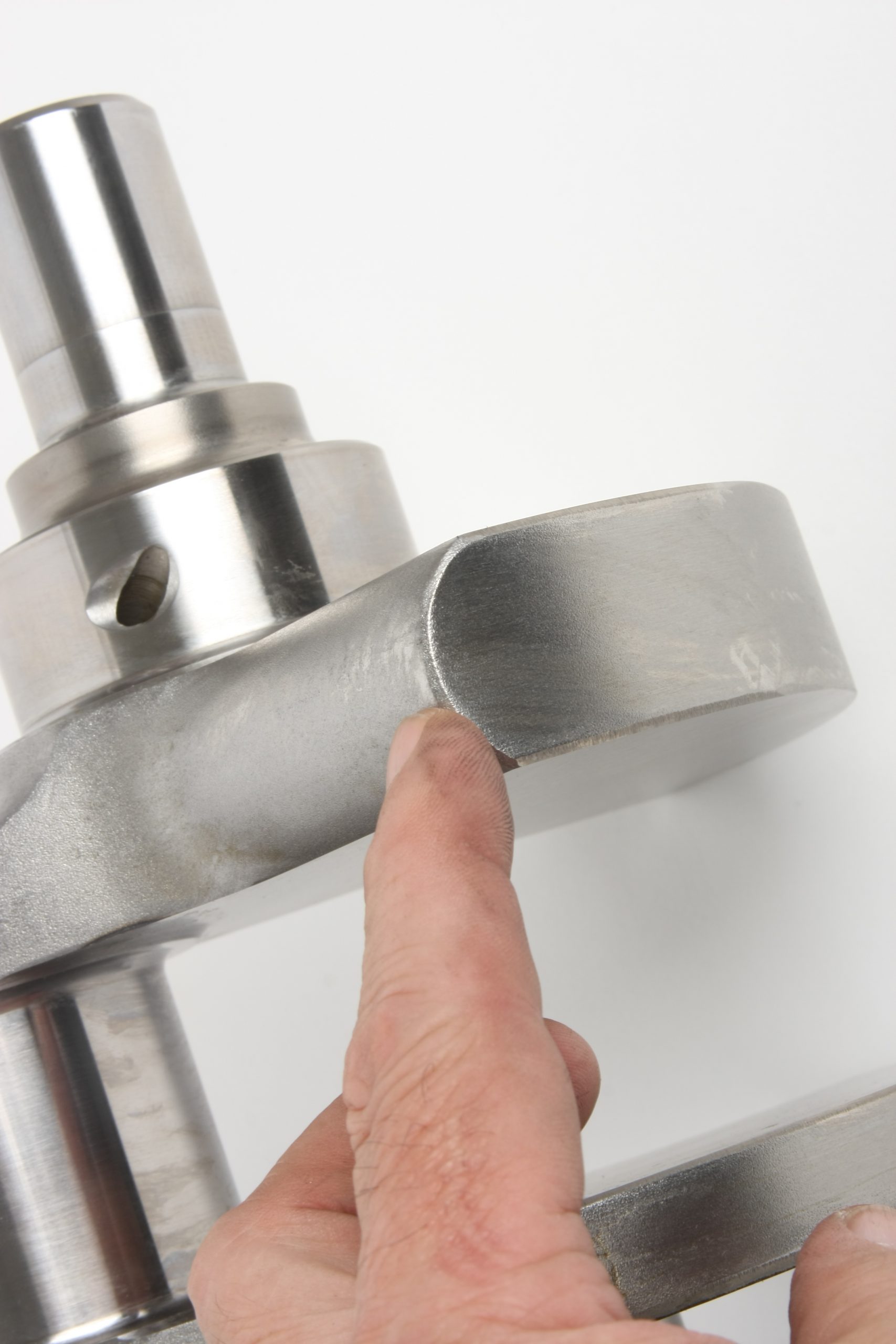

The trailing edge of each counterweight is knife edged to help sling off parasitic oil. The bullnosing of the leading edges and tapered knife edging of the trailing ends is similar to the profile of an airplane wing, creating a vortex at the trailing edge. (Image/Mike Mavrigian)
Our Icon forged pistons have moly-coated skirts for oil retention and reduced friction. Due to the diameter and barrel shape of a given piston, the manufacturer will indicate where skirt diameter must be measured. Icon uses a dot on the skirt to indicate the measuring points. (Image/Mike Mavrigian)

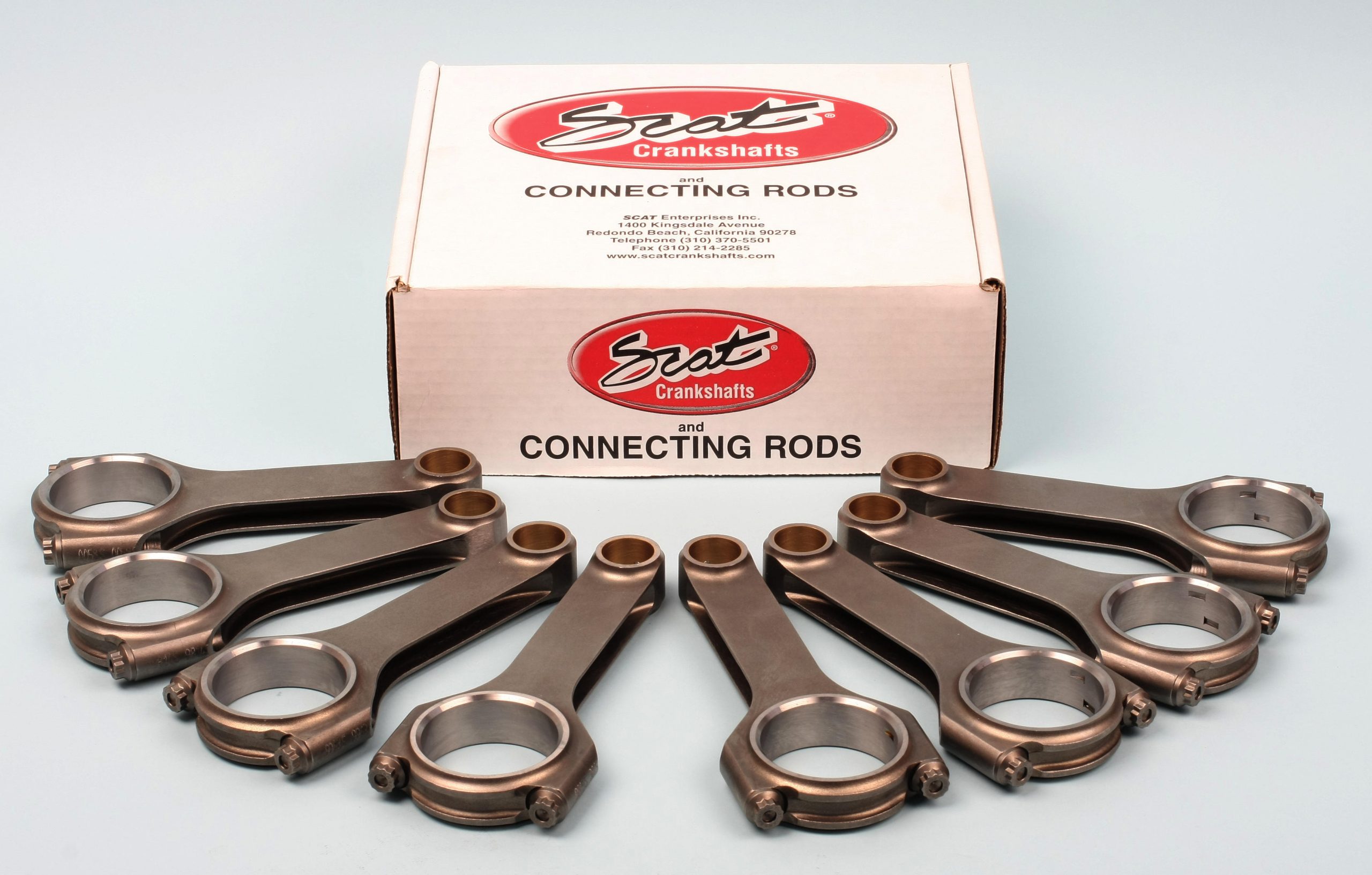

Our rods of choice are Scat forged H-beams with a center-to-center length of 6.000″ with a big end bore of 2.100″. (Image/Mike Mavrigian)
The Icon pistons weighed in at a mere 406 grams. The rods weighed 429 grams at the big end and 186 grams at the small end. (Image/Mike Mavrigian)

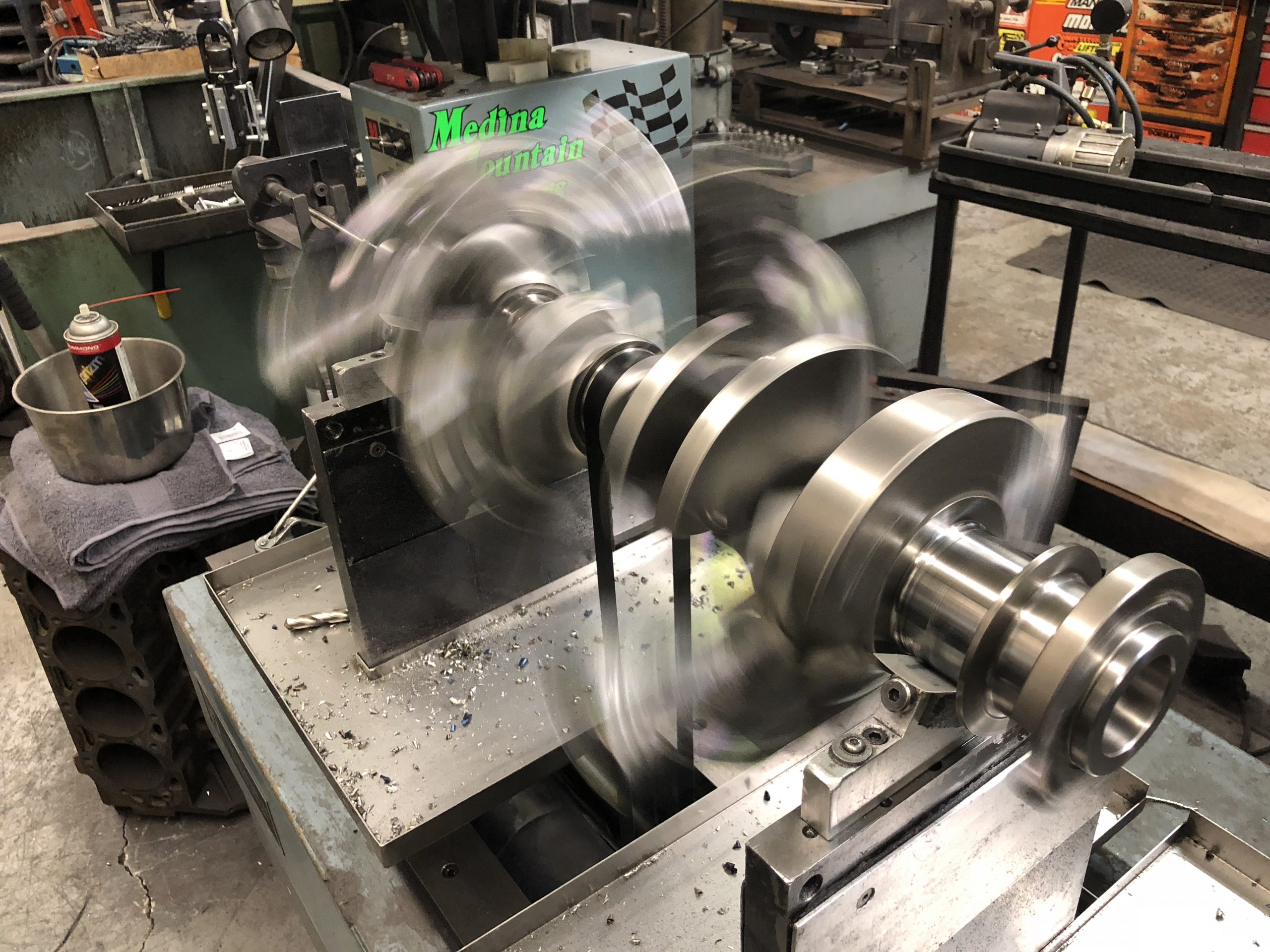

After correcting for the bobweights, the crank’s static and dynamic balance was extremely close to zero thanks to balancing whiz Jody Holtrey of Medina Mountain Motors in Creston, Ohio. A tungsten heavy metal slug was required in each of the end counterweights. (Image/Mike Mavrigian)

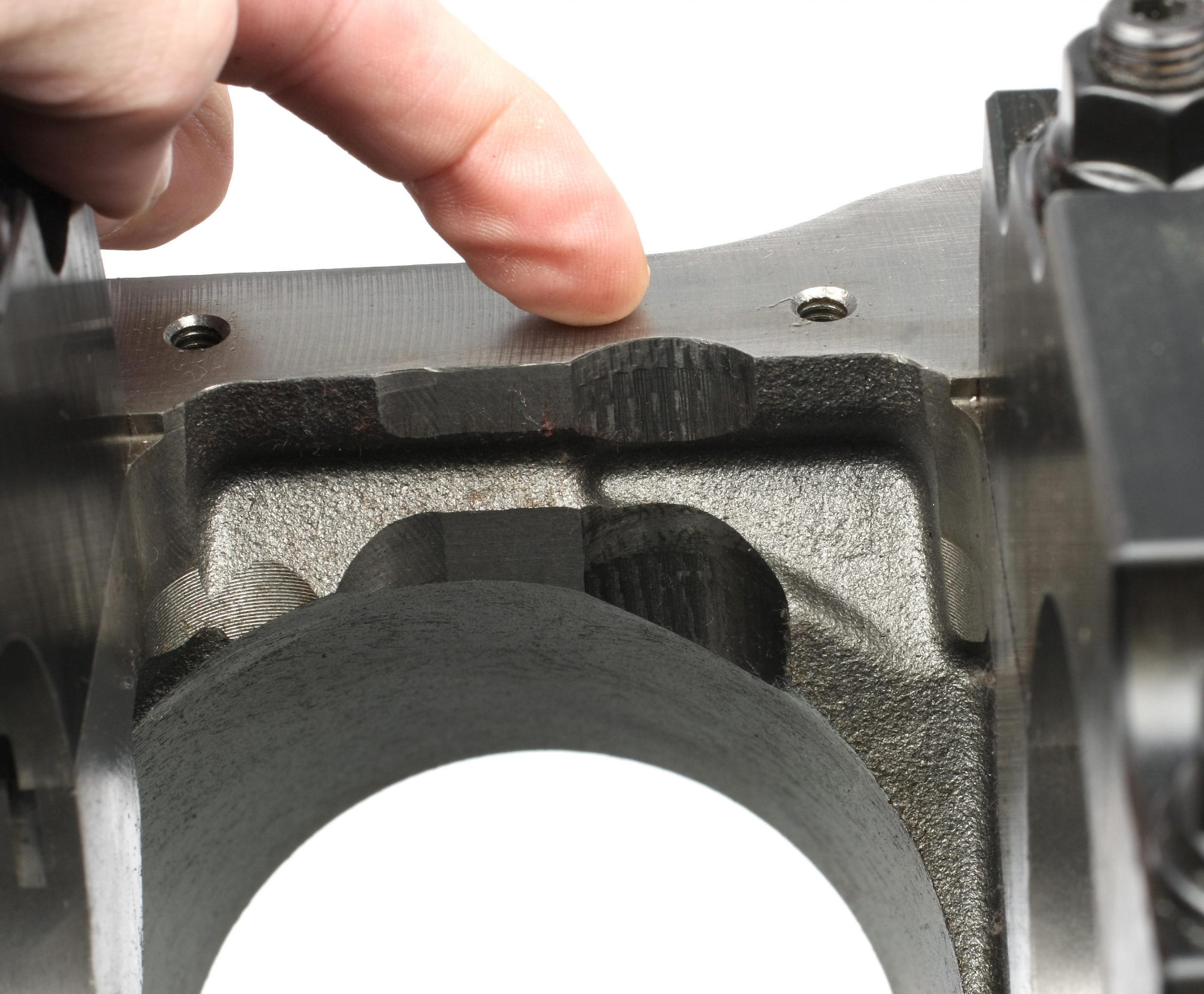

Dart provided slight reliefs in the block for the connecting rod big ends. I simply enlarged the reliefs enough to clear our stroker crank and rod combo. (Image/Mike Mavrigian)
Our camshaft of choice for this build is a COMP Cams solid billet roller. Duration at 0.050″ valve lift is 263° intake/272° exhaust. With 1.6:1 Jesel roller rockers, effective valve lift is .648″ intake/.645″ exhaust. (Image/Mike Mavrigian)

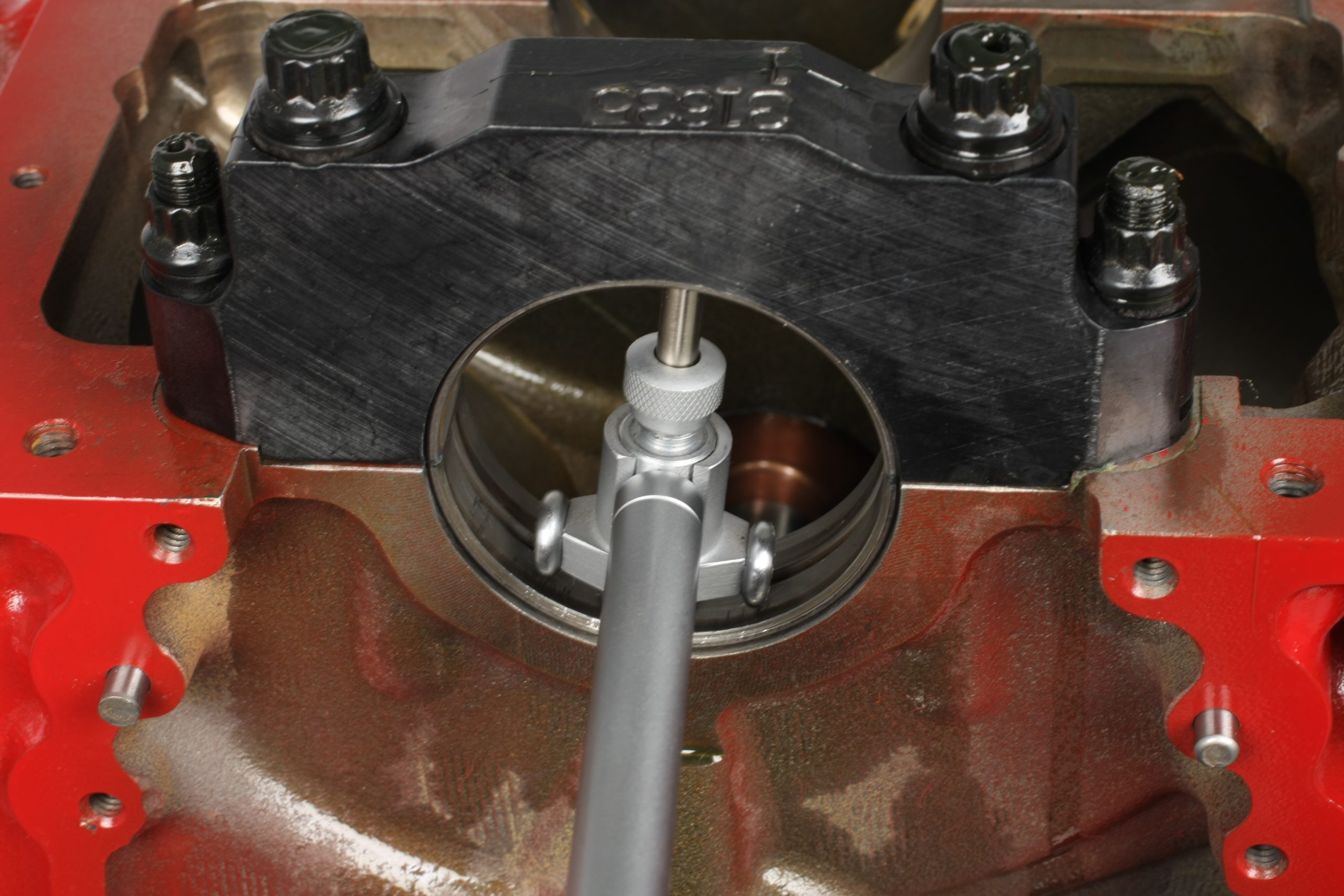

Our main journals checked out at 2.450″ diameter on all five main journals. We indexed a bore gauge to the micrometer used to measure main journal diameter to measure for main bearing clearance with the caps installed. We got 0.0025″ of clearance, exactly what we wanted. Our rod journals also measured exactly on spec at 2.100″. (Image/Mike Mavrigian)

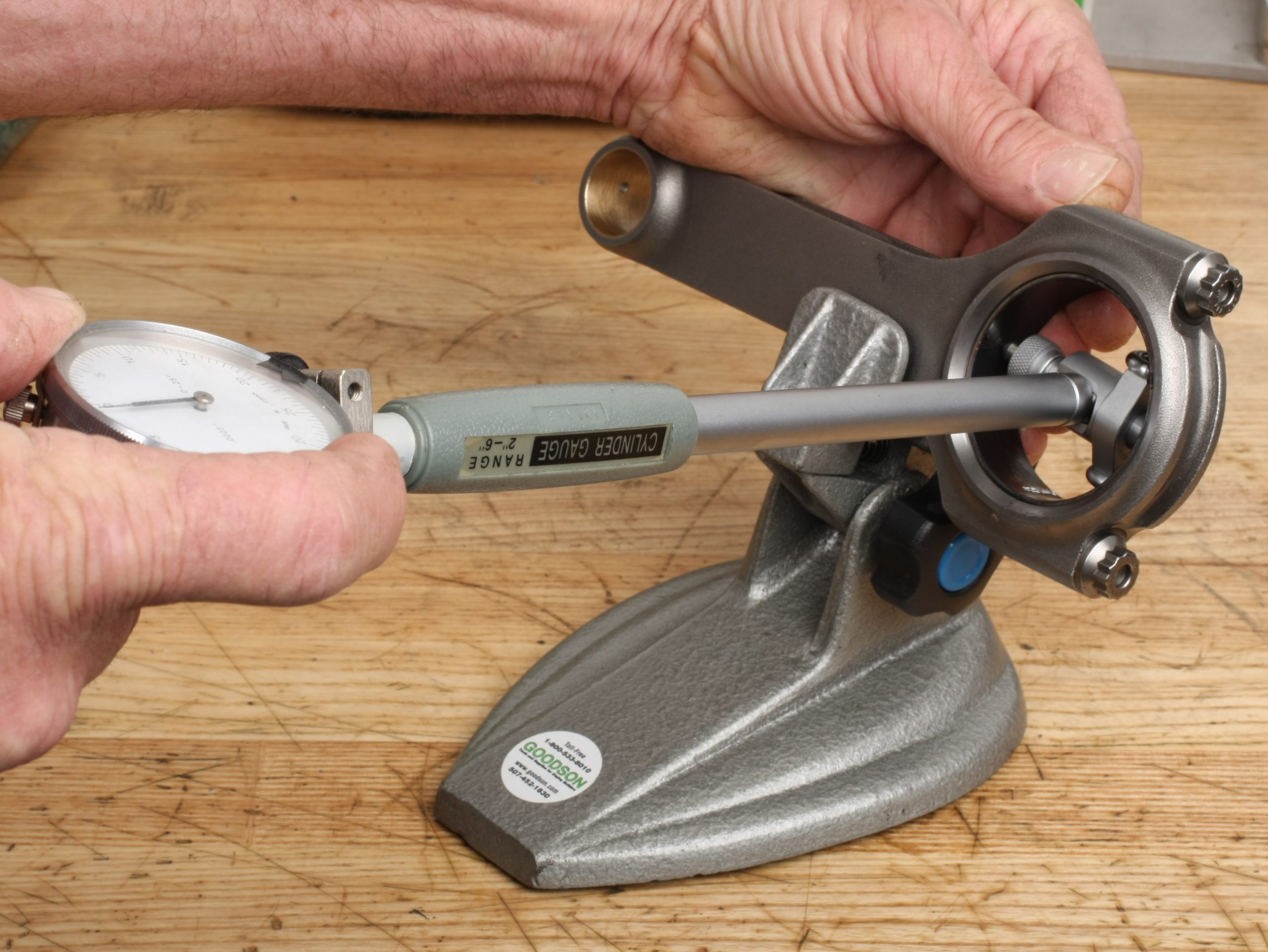

With a high-RPM engine like our 422, we like rod bearing clearance a touch on the loose side. To accomplish this, we installed standard-size Clevite bearings in the upper position and 1X bearings that are .001″ oversize in the lower rod caps. Using this combination provided an additional 0.0005″of oil clearance. Final bearing clearance was 0.0025″. (Image/Mike Mavrigian)

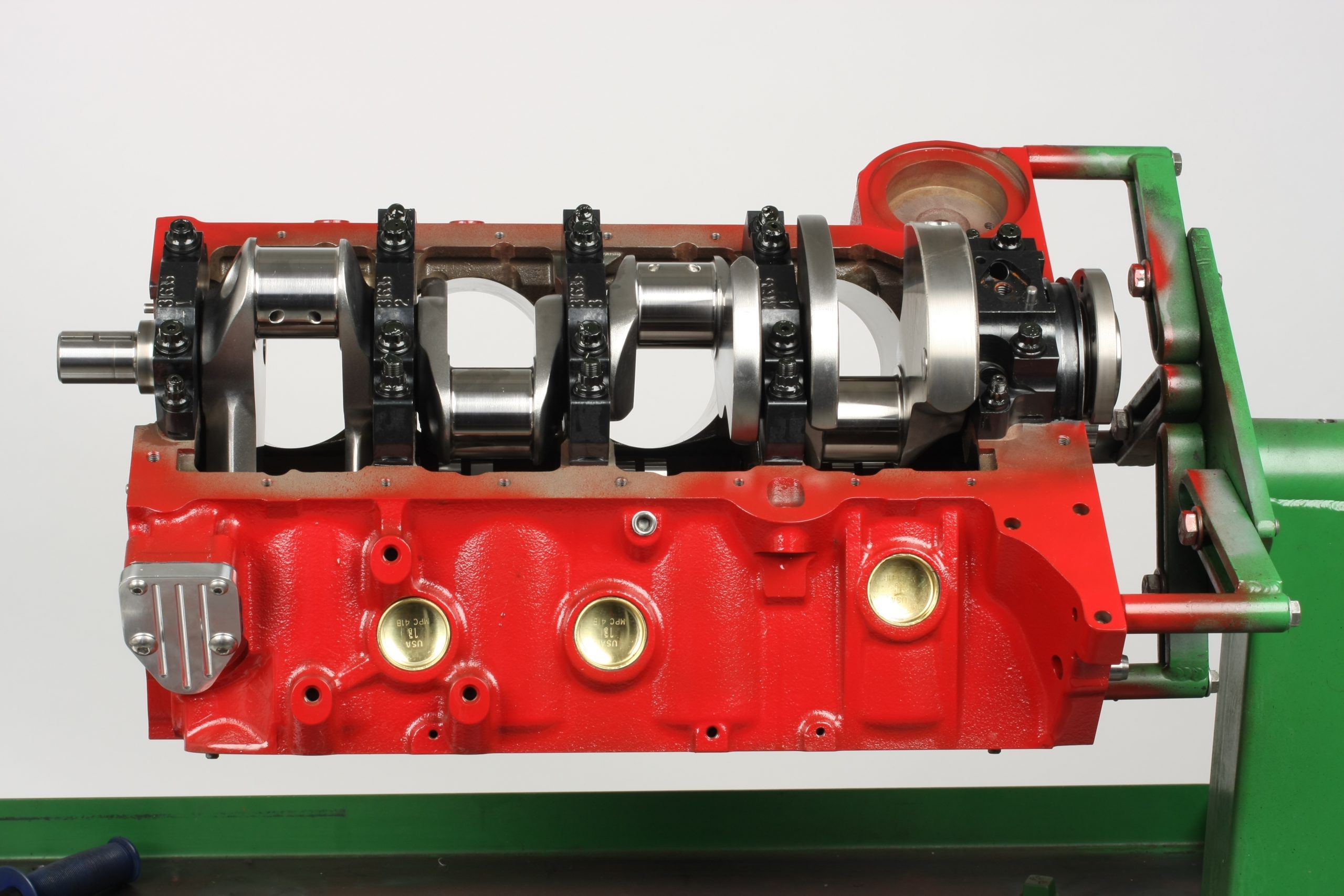

With the crank installed and main bearings lubed with Royal Purple Max Tuff assembly lube, the main cap stud nuts were torqued in three progressive steps to 65 ft.-lbs. The crank rolled like butter and was easy to turn with two fingers on the snout. With all bearings and main caps torqued, our crank endplay measured 0.006″. (Image/Mike Mavrigian)
While there’s nothing wrong with using a timing chain, we opted for a Jesel cam belt drive for super-accurate cam timing. The belt drive includes the cover plate which seals to the block; a cam nose adapter; an upper spider plate and cam pulley; crank pulley; toothed belt; cam thrust shims; and cam endplay shims. (Image/Mike Mavrigian)

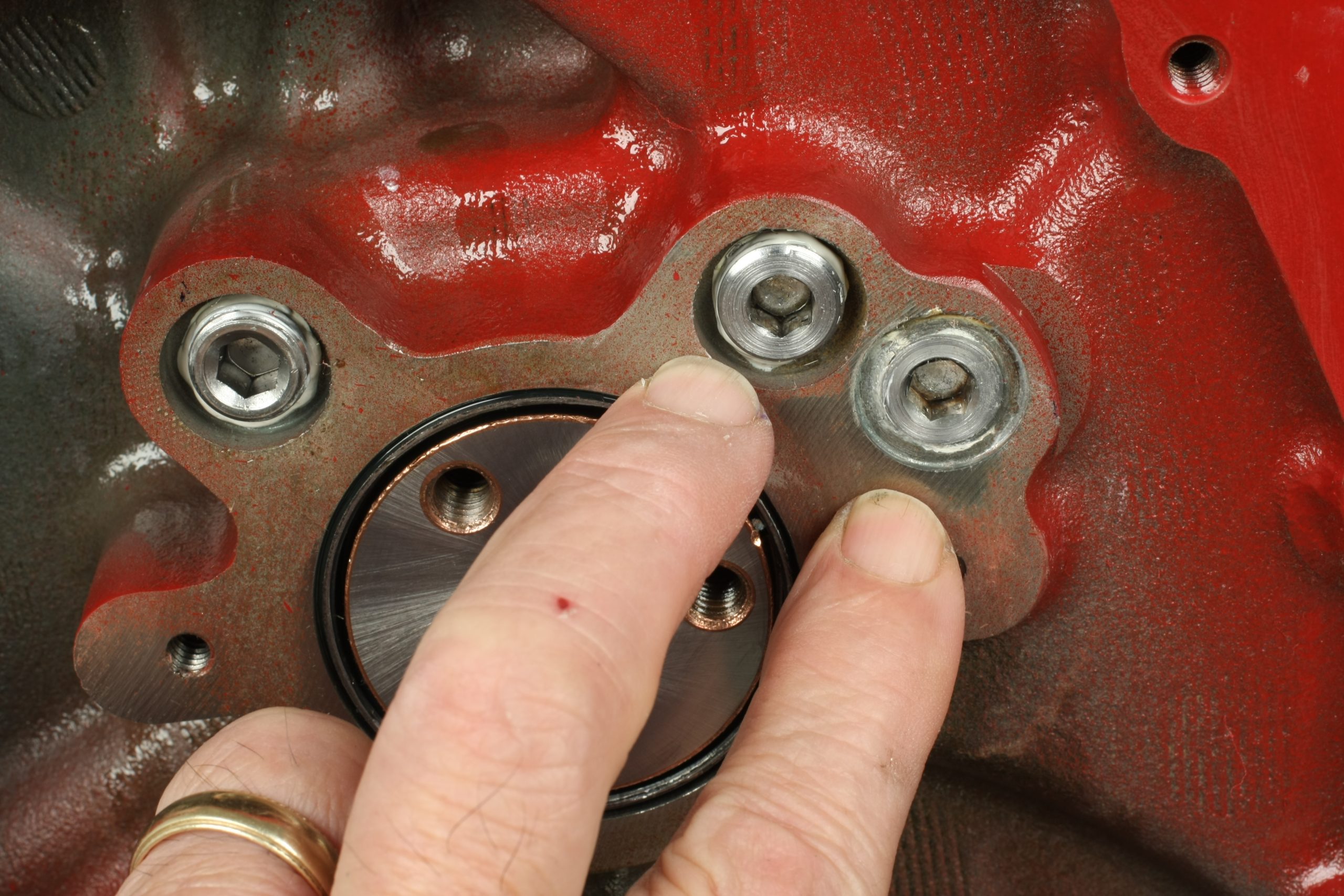

The front three oil galley plugs must be installed flush or just below the machined face to clear the Jesel belt drive cover plate. If the plugs protrude, tapping the 1/4″ NPT threads a bit deeper is usually all that’s needed. I also shaved two of the plugs on my lathe in order to obtain a flush fit. (Image/Mike Mavrigian)
Two NPT holes in the front of the lifter valley must be plugged. The hole on the right side accepts a 1/4″ NPT plug while the hole on the left side requires a 1/8″ NPT plug. (Image/Mike Mavrigian)

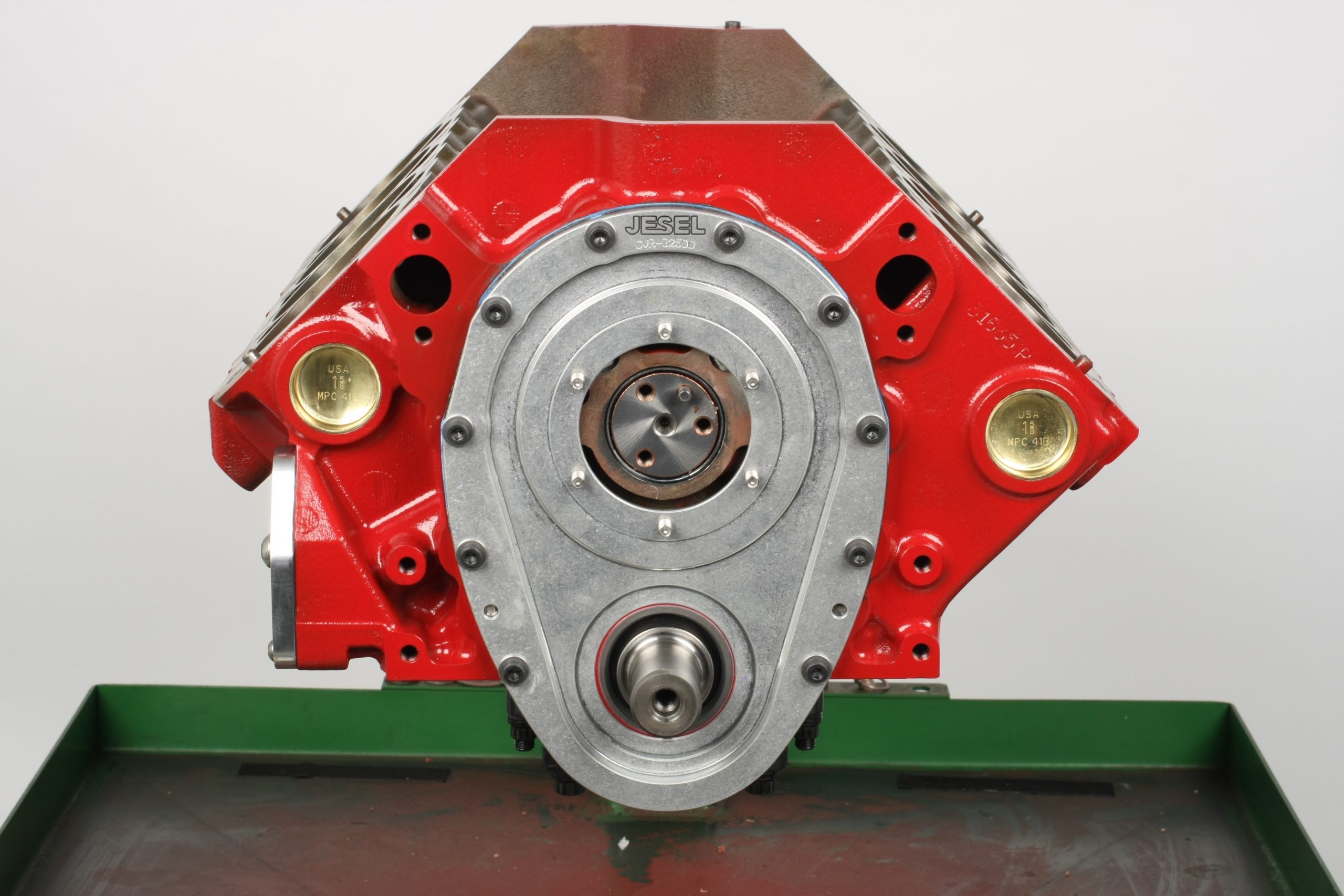

The Jesel cover plate is installed with the supplied socket-head cap screws. This seals off oil from the pulleys and belt, which run “dry.” (Image/Mike Mavrigian)

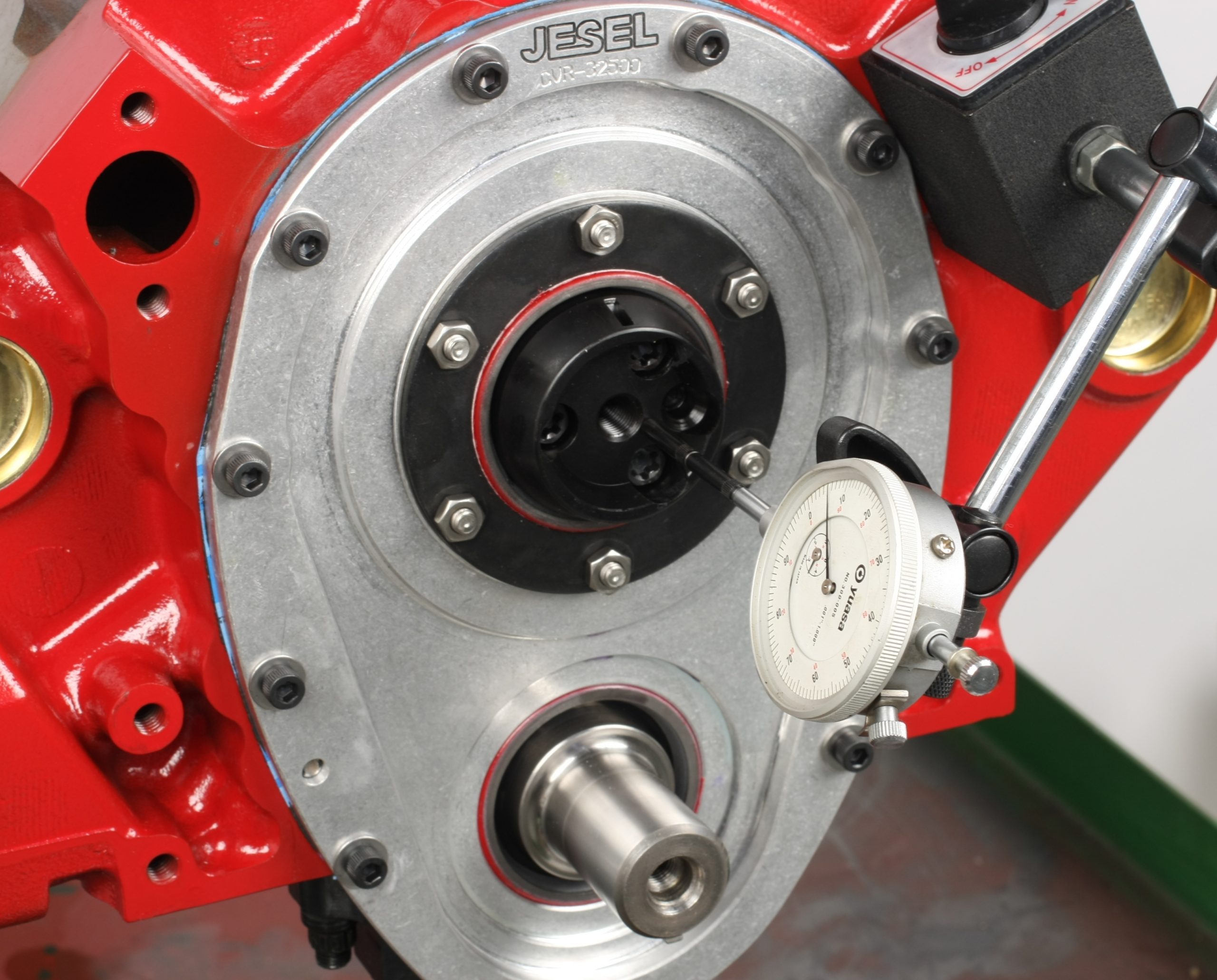

Jesel provides 0.010″, 0.015″, and 0.020″ thick shims to adjust cam endplay. All three are used to get the initial measurement. With the shims installed, the retainer plate secured, and a dial indicator contacting the adapter, move the cam back and forth to determine existing cam endplay. We finalized ours at 0.006″by using only the 0.015″ and 0.020″shims. (Image/Mike Mavrigian)

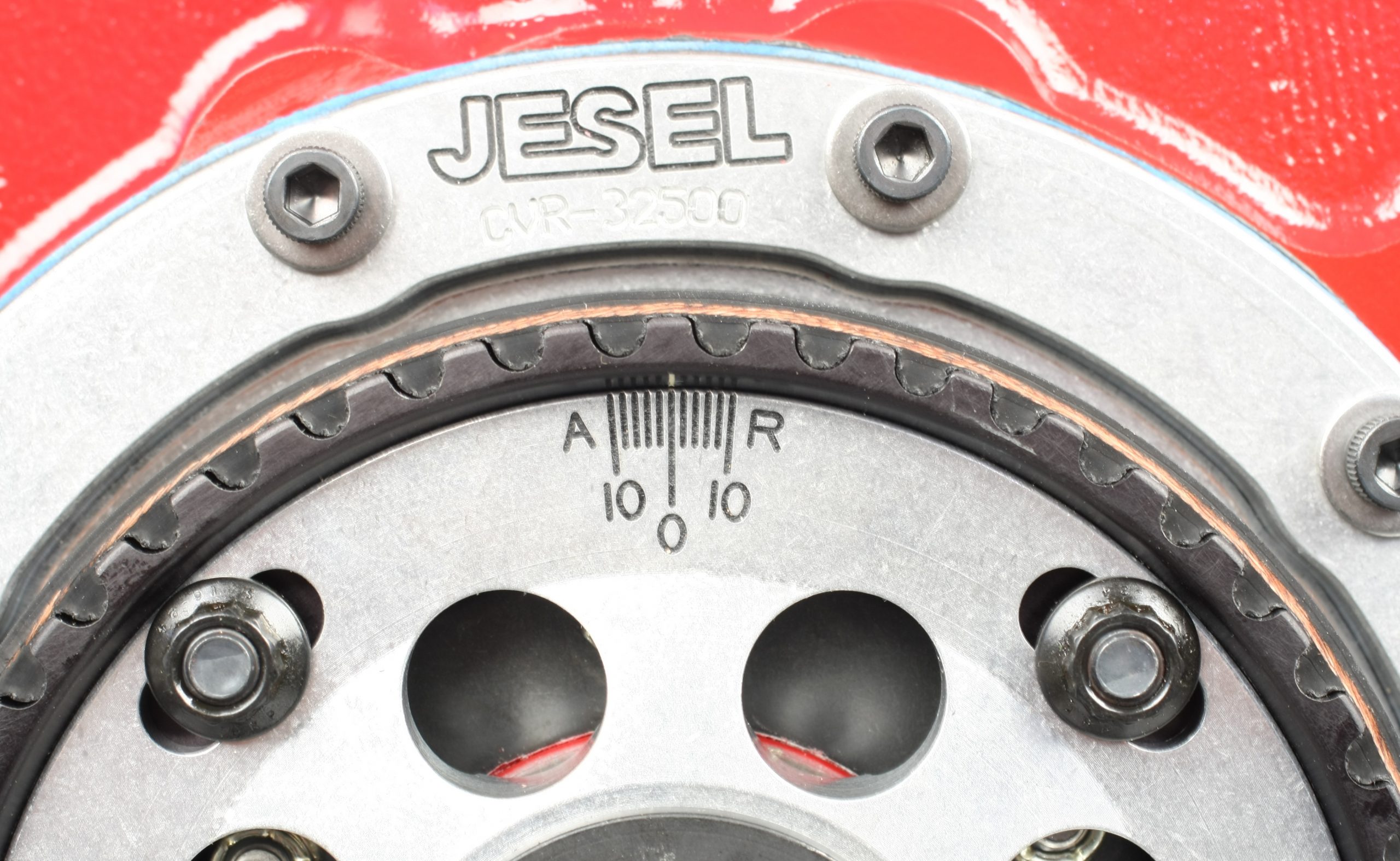

This closeup shows the timing mark on the cam pulley that is aligned with the zero mark on the spider. Each mark on the spider plate represents 2 degrees. To adjust cam timing, loosen the four nuts that secure the cam pulley to the spider plate, rotate the cam pulley, and retighten the nuts to 22 ft.-lbs. Our COMP cam’s intake centerline is 108 degrees straight-up (zero timing). We advanced the cam by 2 degrees to get a bit more low and midrange torque. (Image/Mike Mavrigian)
The Icon pistons are secured to the Scat H-beam rods with full-floating pins and a spiral lock on each end of the pin. (Image/Mike Mavrigian)

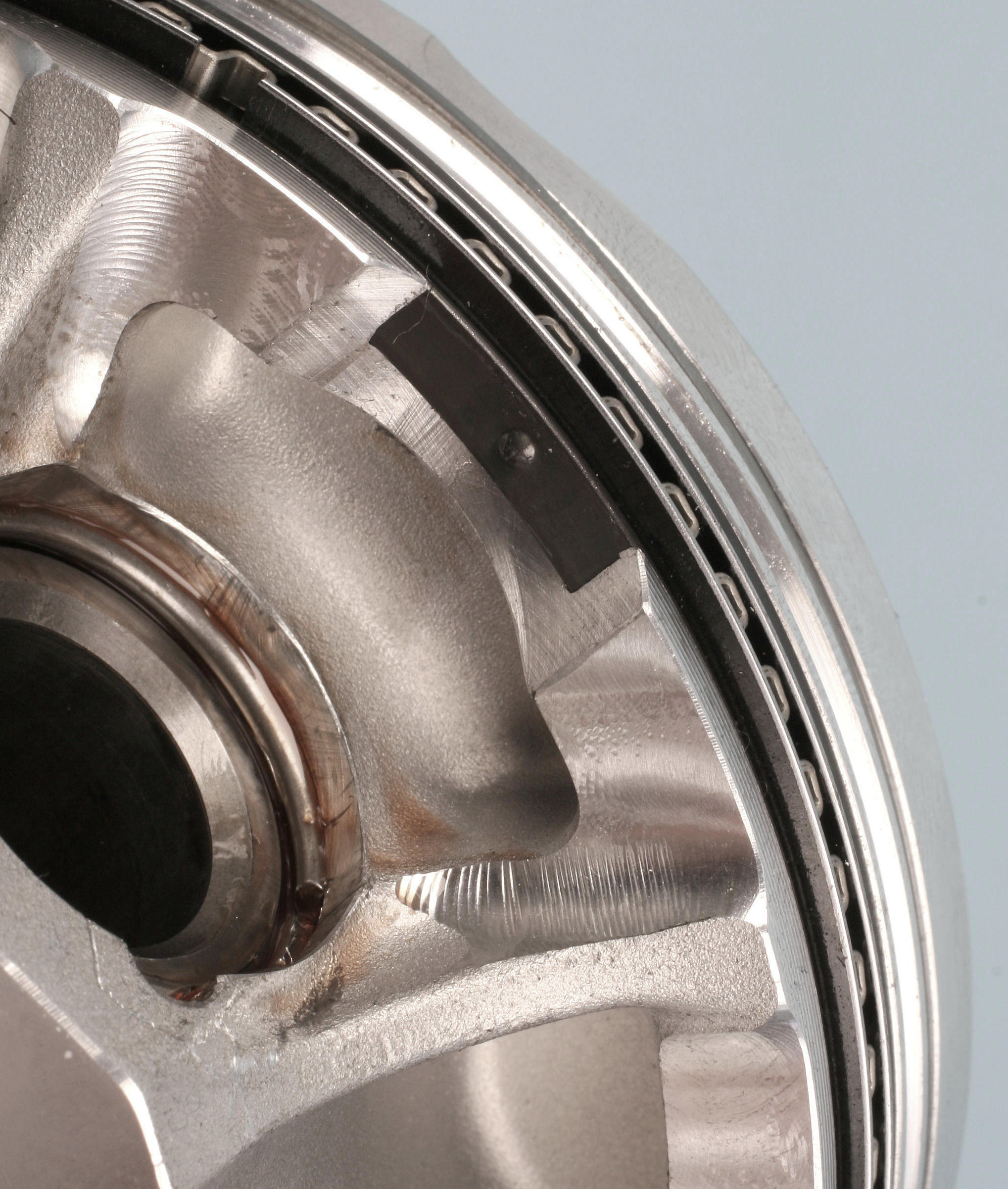

Due to the pistons’ short 1.062″ compression height, the wrist pin bore intersects the oil ring groove. A support rail is installed at the base of the oil ring land to complete the floor for the oil ring at each end of the pin bore. A male dimple on the support rail is positioned in one of the openings. This prevents the support rail from rotating too far, insuring that the rail gap does not reach the open area. (Image/Mike Mavrigian)

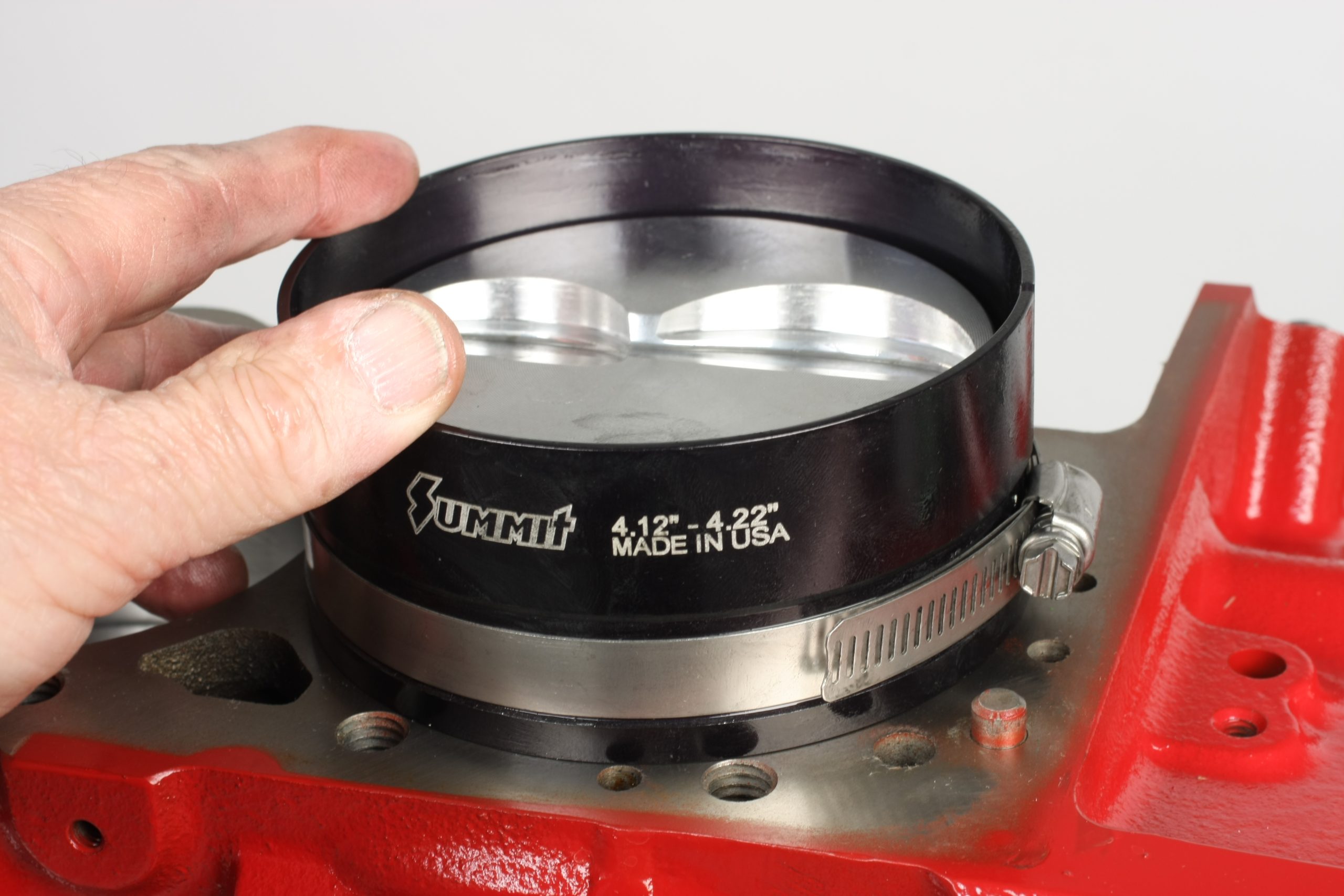

The rod and piston assembly passes through the ring compressor until the bottom of the piston skirts are exposed, then the assembly is pushed into the cylinder bore. Keep the ring compressor flush with the deck. (Image/Mike Mavrigian)

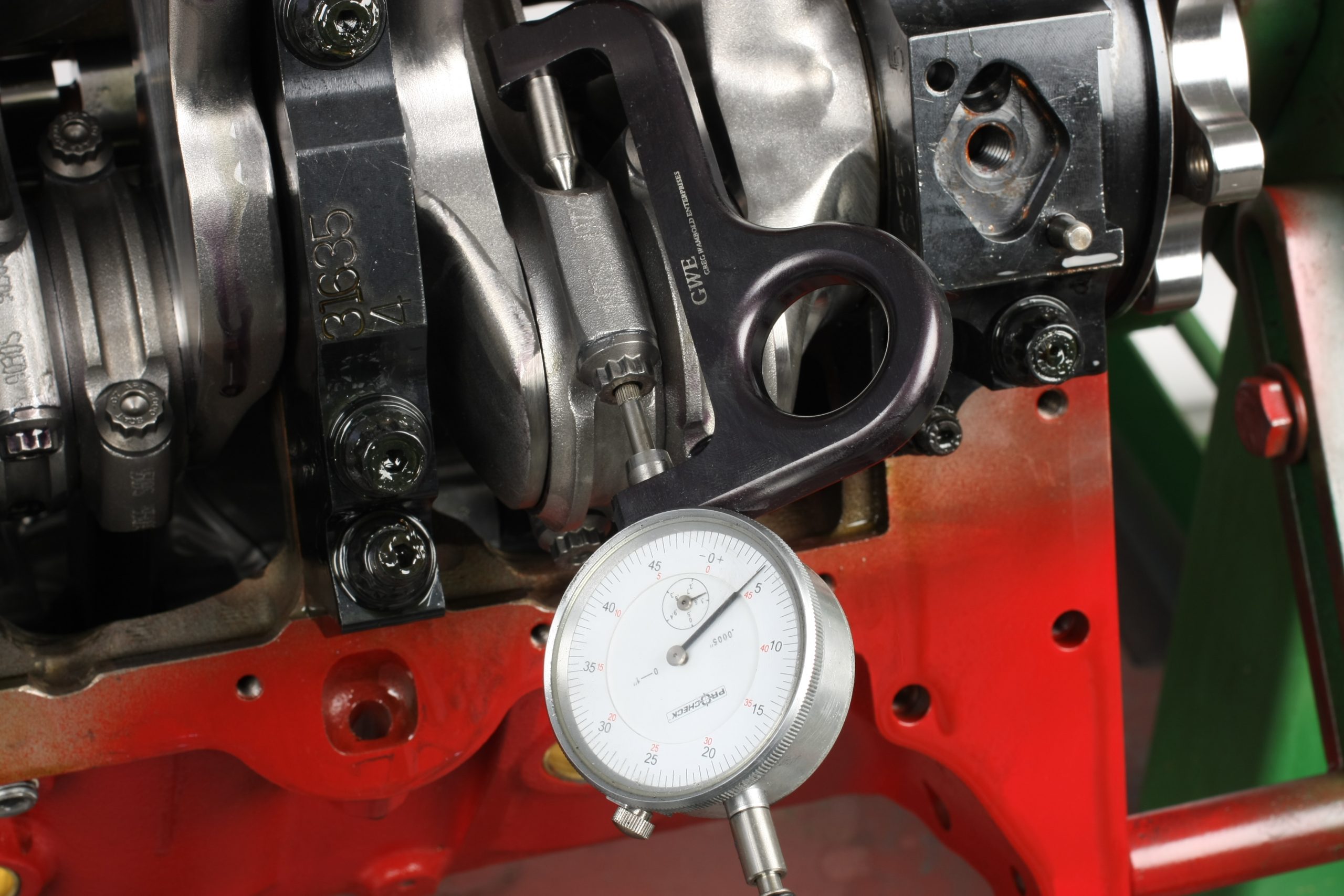

The ARP 2000 rod bolts that came with the Scat rods were indexed at zero on the rod bolt stretch gauge prior to installation. This provides a reference during torquing to observe bolt stretch. The bolts were tightened to 70 ft.-lbs., providing an average bolt stretch of 0.0045″. (Image/Mike Mavrigian)

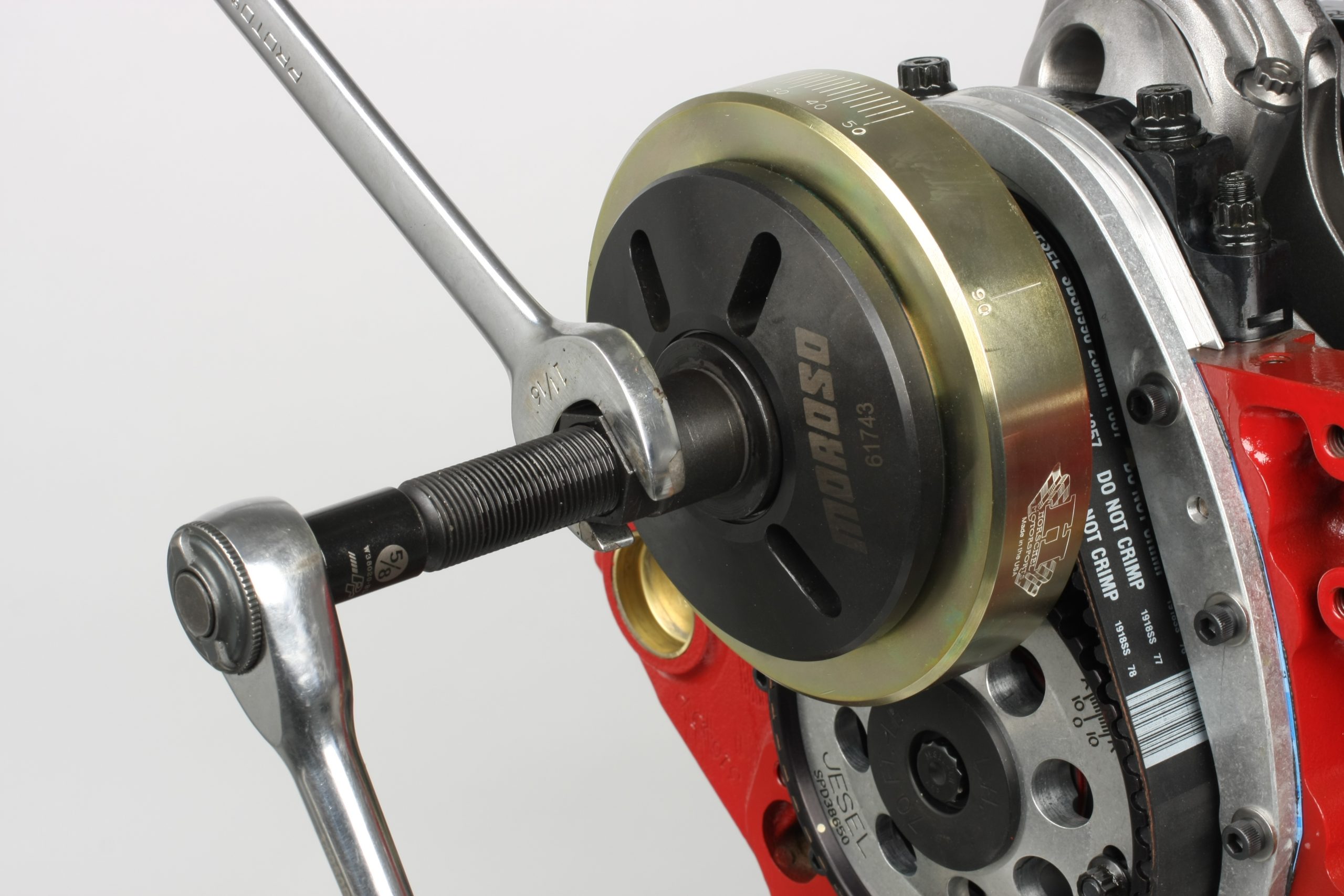

To install the Fluidampr harmonic balancer, apply anti-seize paste to the crank snout and the balancer’s bore. Align the keyway in the balancer bore to the crank key. Thread the mandrel tip into the crank snout and set the plate flush to the face of the balancer. The mandrel nut is turned clockwise to smoothly draw the balancer fully onto the crank. Our interference fit was just under 0.003″, which provided a secure fit without resorting to a hammer. (Image/Mike Mavrigian)

Author: Mike Mavrigian

Mike Mavrigian has been building and writing about engines almost as long as there has been internal combustion. He has written well over 1,000 technical articles and seven books, and is editor of Precision Engine Magazine. Mike’s shop, Birchwood Automotive, specializes in street performance and racing engines and vehicle restoration. As you’ll see in this article series, he includes a wealth of information on his engine builds.
