Piston Primer: How to Properly Install Pistons

You’ve seen it—somebody trying to install pistons and ending up with pinched or broken piston rings or so much oil in the bore their shoes are drenched. It doesn’t have to be that way if you use the easy-to-follow procedure outlined in the photo captions. Happy piston installin’!


Piston 1
Piston 2
Piston 3
Piston 4
Piston 5

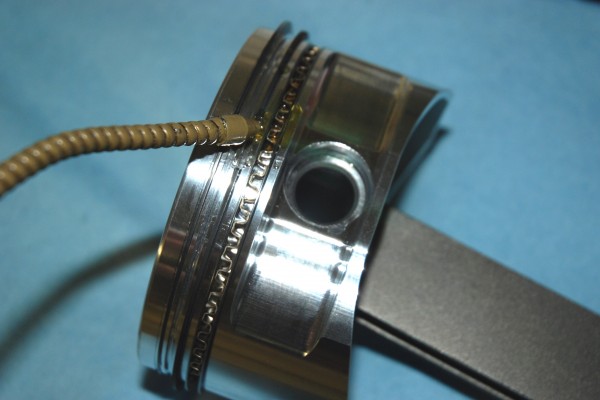

Wipe the cylinder bores with a clean, lint free towel and apply a small amount of conventional (non-synthetic) oil to the walls. Apply a liberal amount of oil to the wrist pins and piston rings as well. You don’t need to drench the piston in oil—use enough to lubricate the rings as they pass through the piston ring compressor. No need to dunk the piston and ring assembly in a quart of oil!

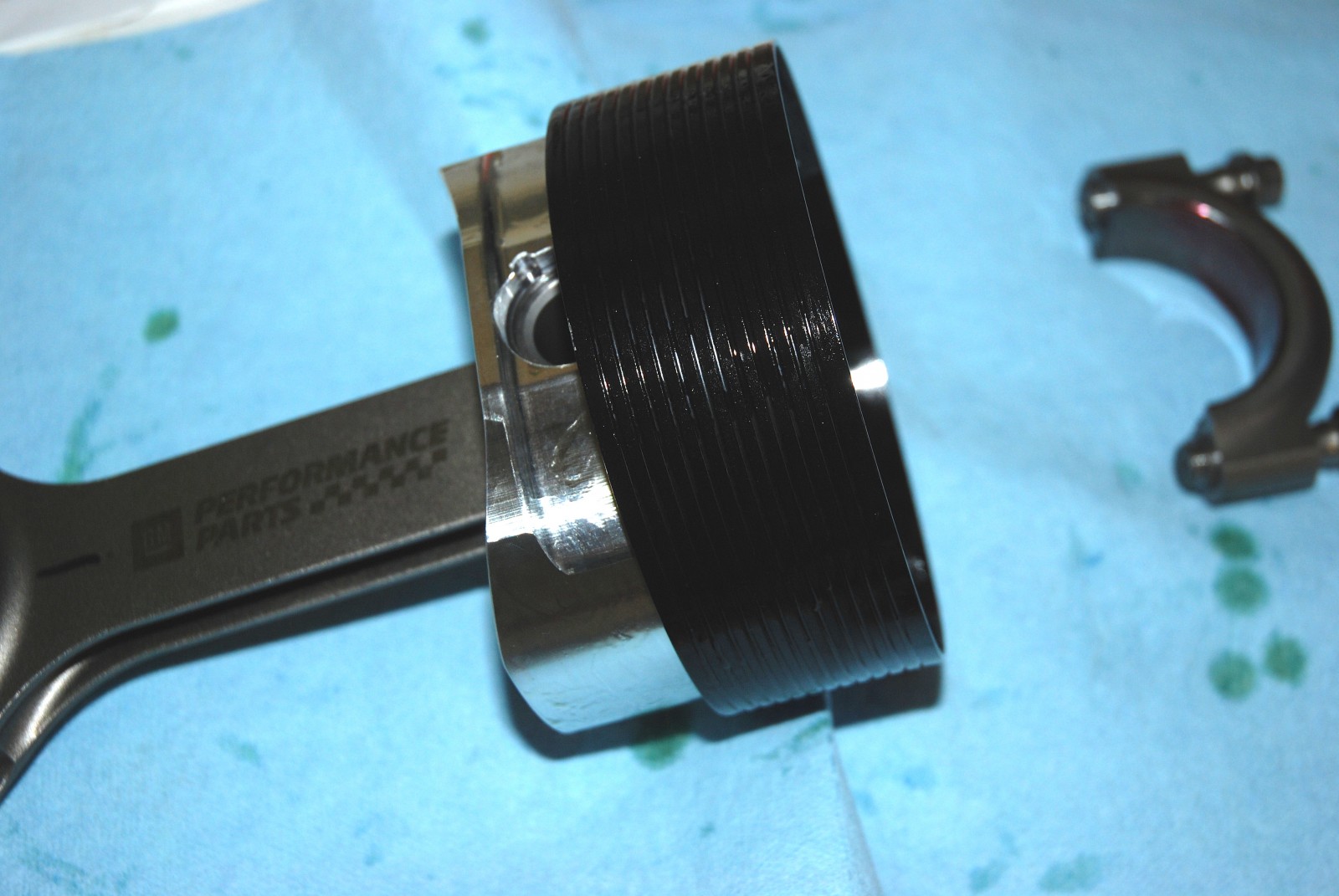

There are two basic types of ring compressors. Expander models clamp over the piston and are tightened in place. Tapered compressors progressively tighten the rings as the piston is pushed through the tool into the bore. Whichever one you use, liberally coat the compressor with oil. Again, it doesn’t have to be dripping wet.

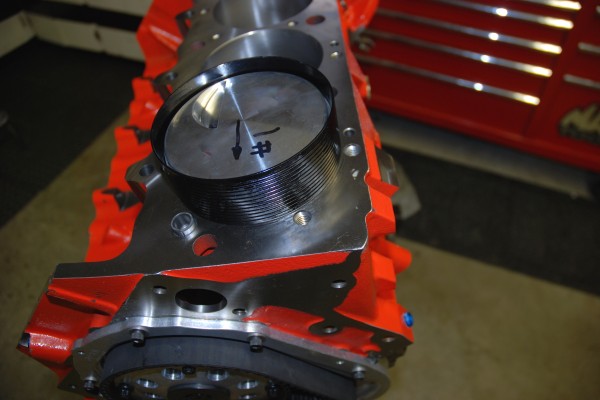

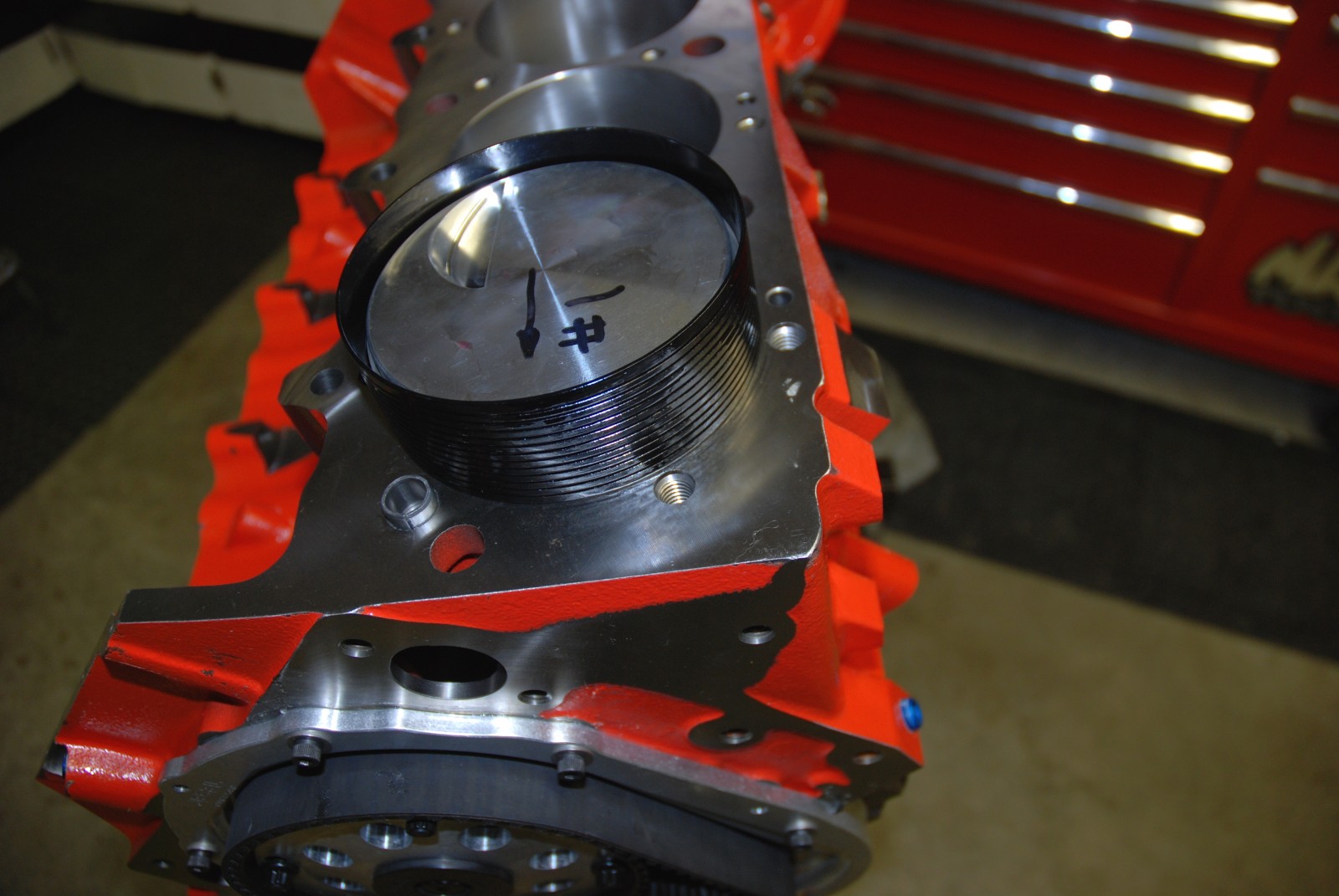

Rotate the crankshaft so the rod journal for the piston you’re installing is at Top Dead Center. Place the piston/ring compressor combination over the cylinder bore. Always do the following before sliding the piston into the bore: • If the piston is domed, the dome should be to the outside of the block • Check that the chamfer on the connecting rod (and rod bearing) is facing the fillet radius on the crankshaft • Make sure the oil rings’ expander ring end gaps haven’t overlapped • Cover rod bolt ends with protectors to prevent crank damage during installation • Coat the connecting rod bearings with assembly lube

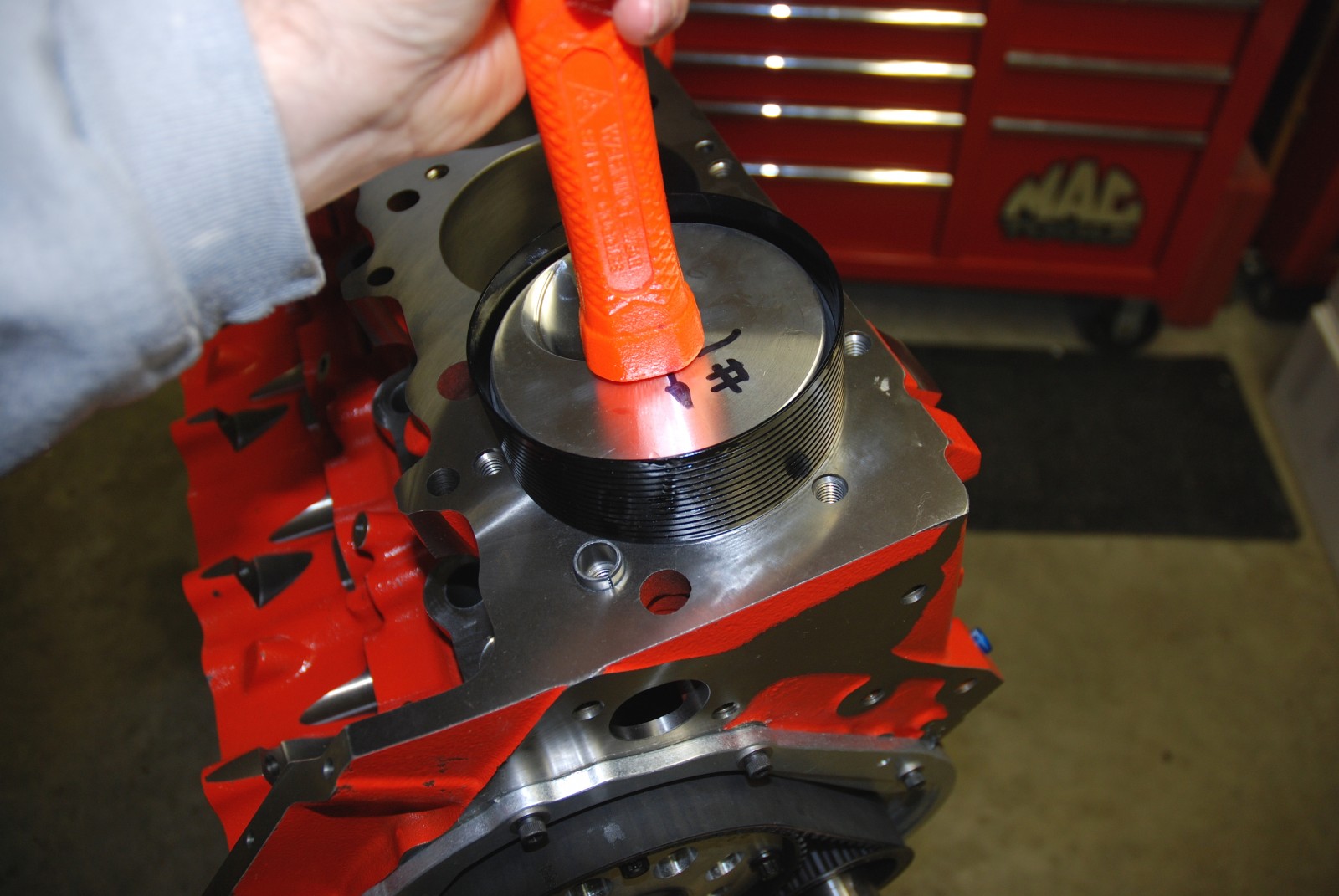

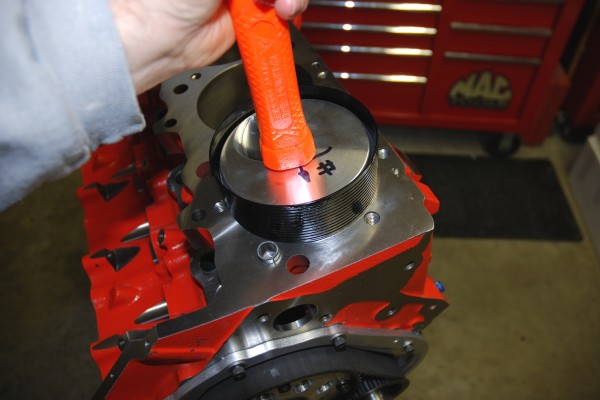

It’s often possible to hand-push the piston and rod assembly into the bore, guiding the rod so that it falls in place over the crankshaft rod journal. Other times you will need to very light tap the assembly in with the handle end of a clean plastic hammer. If you need excessive force to push the piston through the ring compressor into the bore, it usually means the oil ring expander rails are overlapped.

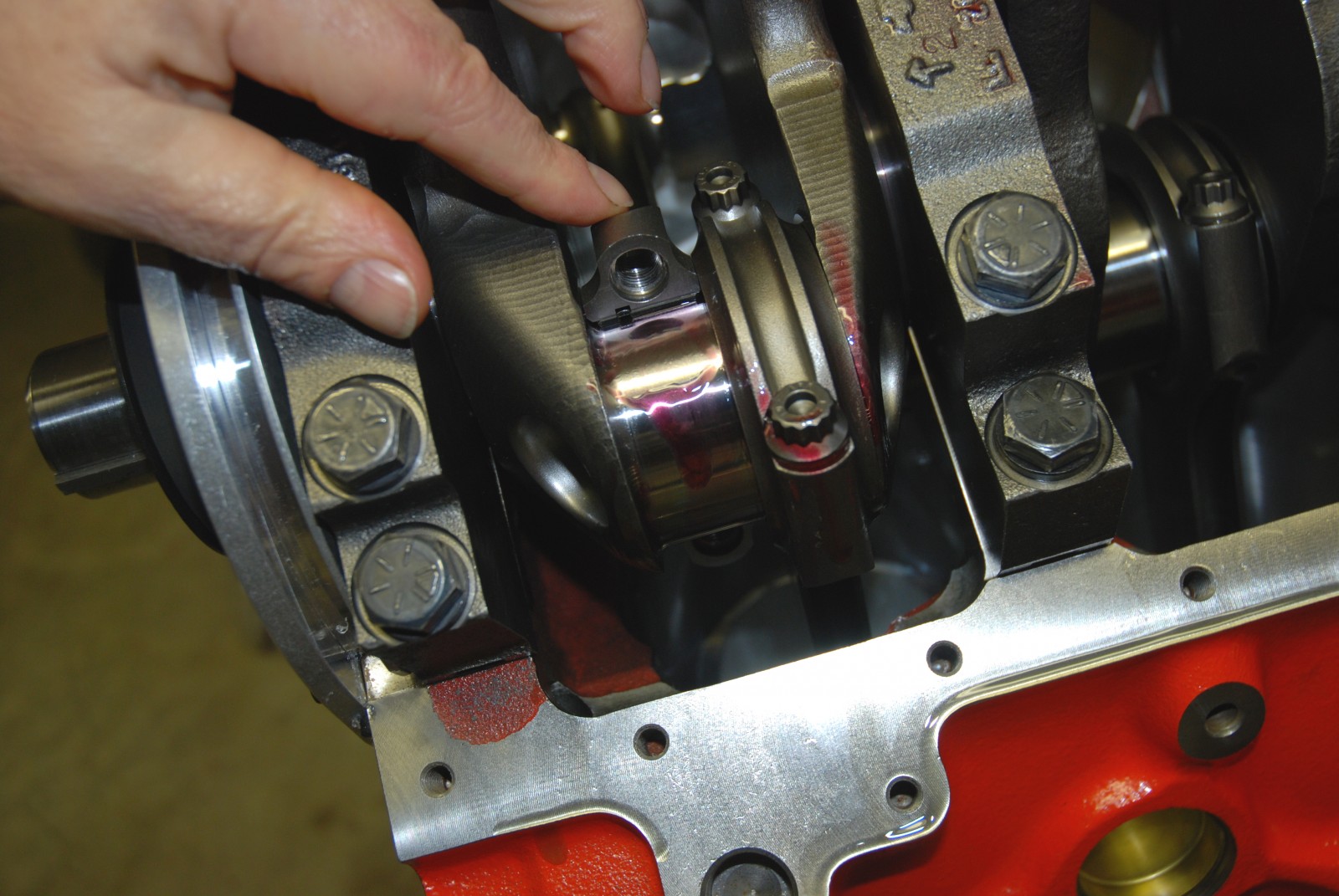

Rotate the engine on the engine stand. Coat the bearing in the rod cap end with assembly lube and install. You can install the rod cap nuts and torque to specifications at this point, provided you’ve checked the bearing clearances. Repeat this sequence on the rest of the piston/rod assemblies.

Tools Required
