Mailbag: What is Valve Float and How Do You Fix It?

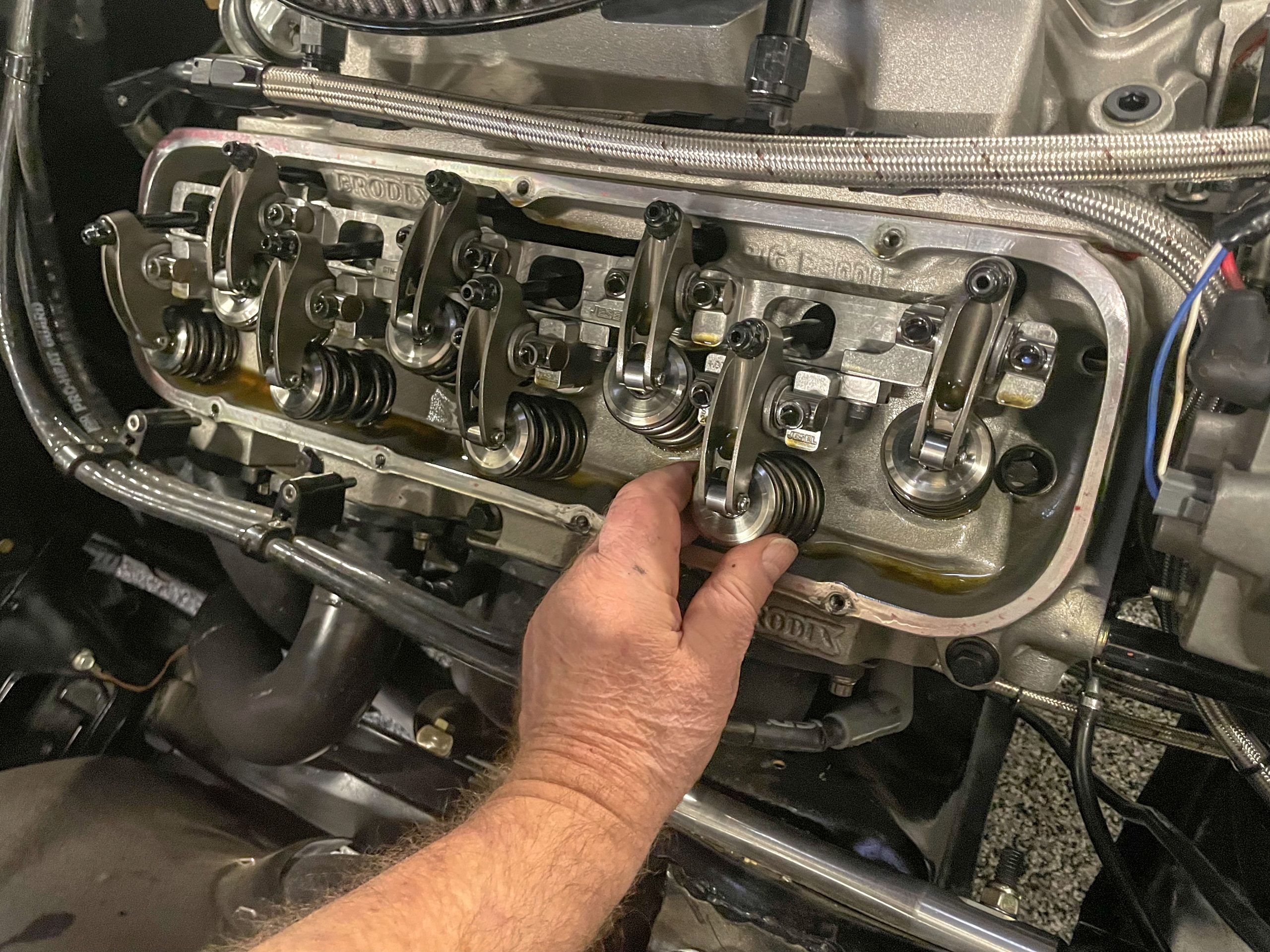

(Image/Moore Good Ink)

Q: What is valve float?

A: Valve float is basically when the valvetrain gets out of control.

There are two types of valve float:

Loft and Bounce.

Loft happens when the lifter is thrown off the nose of the cam lobe. This is caused by too little open pressure.

(Image/Summit Racing)

Bounce happens when the valve bounces off its seat, before it settles. This is caused by too little seat pressure.

(Image/Summit Racing)

How do you identify valve float?

  • Mild valve float can be felt as power falling off quickly at high rpm.
  • Severe valve float will be heard as a sputtering sound at peak rpm.

How does valve float affect performance?

When the lifters loft, the valve spring can go into coil bind. This could cause bent or broken valvetrain parts. In severe cases, the exhaust valve can hit the piston. To fix a loft problem, increase your valve spring open pressure.

When a valve bounces off the seat, the engine loses compression. To fix a bounce problem, increase your valve spring seat pressure.

Lighter valvetrain parts can also help with valve float issues. Hollow stem valves, titanium retainers, and titanium valves are available for many applications. These parts reduce the weight of the valvetrain and make it easier for the springs to control the valves.

This is another in a series of weekly Q&A Mailbag sessions with Summit Racings tech department, in which there are hundreds more. Click here to see them all.
