How to Build a Ford Inline Six Engine for Durability and Power

When Ford was developing the popular 221/260/289/302 cubic-inch small block V8 known as the “90-Degree Fairlane V-8,” it was also working on a lightweight inline six for the new compact Falcon and Comet coming for 1960. At the time, Ford offered huge sixes displacing 240 and 300 cubic inches, which delivered big time torque in full-sized Fords. However, a six this size was never practical for compact and intermediate-sized Fords and Mercs.

When the 144 cubic-inch six was introduced in the 1960 Falcon and Comet, it certainly delivered fuel economy. However, it did not deliver power (85 horsepower) with a 3.500-inch bore and a 2.500-inch stroke. For 1961, Ford upped the ante with 2.940-inches of stroke to achieve 170 cubic inches and 105 horsepower. For 1963, Ford introduced the 200 cubic-inch six, also with four main bearings, 3.685-inch bores, and 3.125-inches of increased stroke for 120 horsepower. Especially cool with these early Ford sixes was the glass fuel bowl Holley carburetors, which sat right over a hot exhaust manifold.

The 200 six ultimately got seven main bearings for smoothness and durability in 1965, which makes it the better variation of this engine.  Unless you’re building a numbers-matching Ford classic, the seven main bearing Ford six is what you want. It can be identified by the Ford casting number, date code, and five freeze plugs.

We’re working with a 1965 vintage, standard-bore Mustang six that has never been apart. What’s more, it hasn’t run since the late 1970s. We’re at JGM Performance Engineering in Valencia, California and about to rattle this thing apart. What we found tearing it apart was typical of the era in which it operated. In those days, gasoline had Tetraethyl lead for octane enhancement, which explains the sludge and carboned up combustion chambers.

Enthusiasts were alarmed when lead went away in automotive fuels in the 1980s. However, the only real concern was how critical lead was to the lubrication of exhaust valve faces and seats. When lead was banned from fuel, exhaust valves and seats eroded on vehicles driven a lot, which made a valve job necessary along with the installation of hardened steel valve seats. No big deal and easy to accomplish.

Let’s get started.

We’re working with an untouched 200ci six from one of 11 1965 Mustang convertibles displayed on Walt Disney’s Magic Skyway at the 1965 portion of the New York World’s Fair. The Wimbledon White convertible had been in storage for decades following its purchase from the original owners who bought it off the Ford Employee Resale Lot. Image/Jim Smart
We were surprised to see adjustable rocker arms on a Ford six with hydraulic lifters. We’re not completely sure if they were all this way or just some. Early 144, 170 and 200 sixes had mechanical tappets. Image/Jim Smart
This thing had been sitting a long time as evidenced by the extensive rust throughout the engine. All of the castings were thermal cleaned and tumbled. Image/Jim Smart
Here’s evidence of excess bearing wear in an engine that got a lot of local driving. A lot of stop and go driving and an engine that never got hot enough. Image/Jim Smart
This is the level of sludge you could expect from dated oil technology and leaded automotive fuels back in the day. Also—an engine that never really got hot on the open road. Clean synthetic engine oil and steady highway miles burn off impurities and moisture in the oil. Engines like to get good and hot, which keeps the oil cleaner. Image/Jim Smart

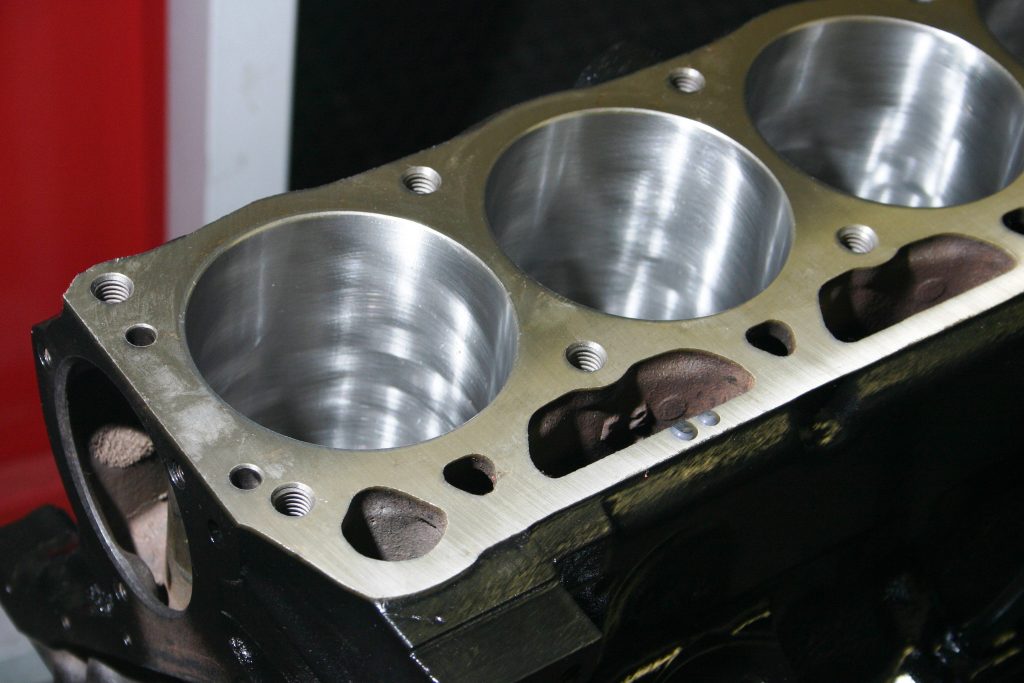

The block has been thermal cleaned and completely machined including decking, line honing, boring and honing along with a detailed clean-up with soap, water, and brushes. The cylinder bores were cut .025-inch oversize, then, finish-honed .005-inch. Image/Jim Smart
You can get virtually everything you’re going to need to build your 144/170/200/250ci six from Summit. Crank has been ground, rods reconditioned with new ARP bolts coupled with Speed Pro cast pistons and fresh ring packs. This is a stock Speed Pro flat tappet camshaft with new hydraulic lifters. Bearings have been dressed with Comp Cams engine assembly lube from Summit. All hardware has been inspected and is ready for a return to service. It is suggested you install new ARP cylinder head and main cap bolts. Image/Jim Smart
The best 200 block to use is the seven main bearing casting from 1965-up. The four main bearing 1963-64 block is pointless unless you’re a purist. You want durability and smoothness. Image/Jim Smart
We’ve opted for a Speed Pro stock grind flat tappet camshaft from Summit for this build. This is a stock grind right off the shelf. Cam lobes get molybdenum lube for proper break-in and work hardening. Journals get assembly lube from Summit. Roller cams get assembly lube on the lobes instead of molybdenum. Image/Jim Smart
Two-piece rear main seals tend to be chronic leakers, but not if you assembly them properly. Stagger the seal ends away from the main cap-to-block mating surfaces. Apply Permatex’s The Right Stuff to the seal ends, between the seal and cap and block, and between the main cap and block. Seal lip gets assembly lube. Image/Jim Smart
Torque main caps from the center caps outward and only in one-third values. Lube all bolt threads and contact surfaces for smooth predictable torque application. By one-third values, we mean—40-45 ft/lbs, then, 55-60 ft/lbs, and finally 65-70 total. Then, go back and check final torque. Image/Jim Smart

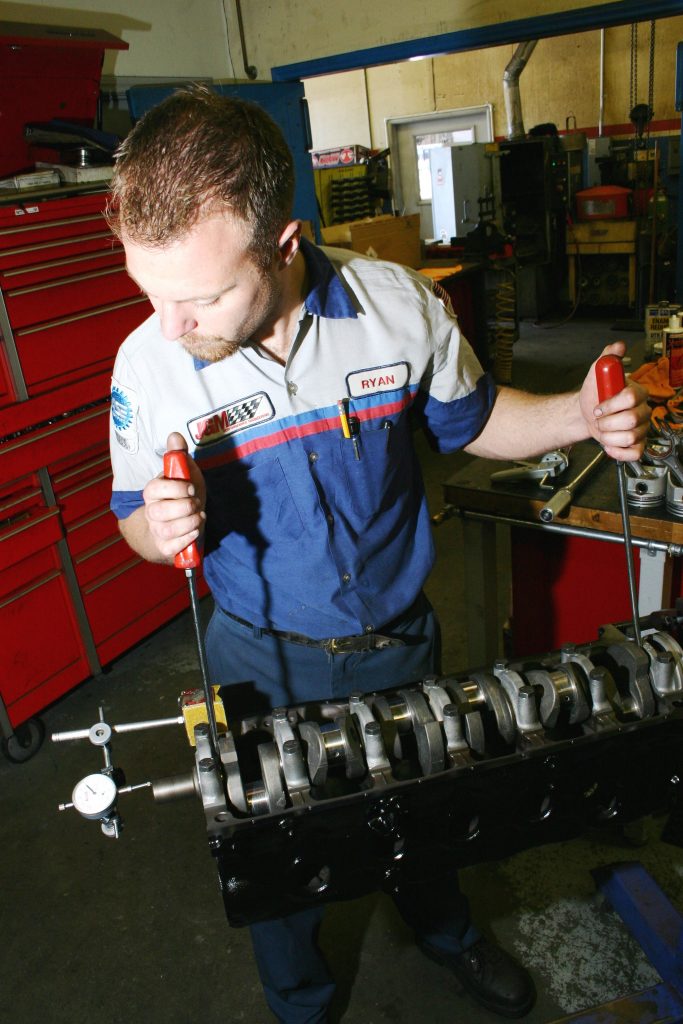

Crankshaft endplay is checked next before assembly continues. The acceptable range is .004- to -.008-inch, with a maximum of .012-inch. Excessive endplay—or not enough—can lead to engine failure. Image/Jim Smart
All hardware has been tumble-cleaned and inspected. Any marginal hardware has been replaced. Threads have been chased. Bolt holes in the block and head have been chased. It’s always a good idea to opt for ARP hardware from Summit if you’re not concerned about originality. Main caps can be studded for extraordinary strength. Rod bolts must be replaced. Always good to employ new head bolts. Image/Jim Smart
A Speed Pro timing set from Summit gets valve timing events on the mark. Camshaft bolt torque is 40-45 ft/lbs with the use of a thread locker on the threads. Image/Jim Smart
Image/Jim Smart
Sinking pistons and rods takes caution because you don’t want to tag a rod journal with the rod bolt. Rod bolts get lubed and torqued to 24-26 ft/lbs. With each piston and rod installation, turn the crank and check for freedom of movement. Image/Jim Smart
Piston deck height and true top-dead-center must be checked, ideally on all six bores though you don’t have to do that. Goal here is to see how far out of the bore, or in, each piston is. Slightly out of the bore is acceptable depending upon head gasket thickness. Can’t have any more than .019-inch above the deck. Image/Jim Smart
Ryan Peart of JGM Performance Engineering checks true top-dead-center before dialing in cam timing events. True top-dead-center is critical to valve timing and too many of us get this wrong. You must confirm #1 piston is at true top-dead-center with the rod journal at true 12 o’clock. Image/Jim Smart
Valve timing events must always be checked, especially with a new camshaft.  Never assume because it is new—or factory original—that it’s on the mark.  We’ve seen camshafts considerably off right out of the box.  Always check. Image/Jim Smart

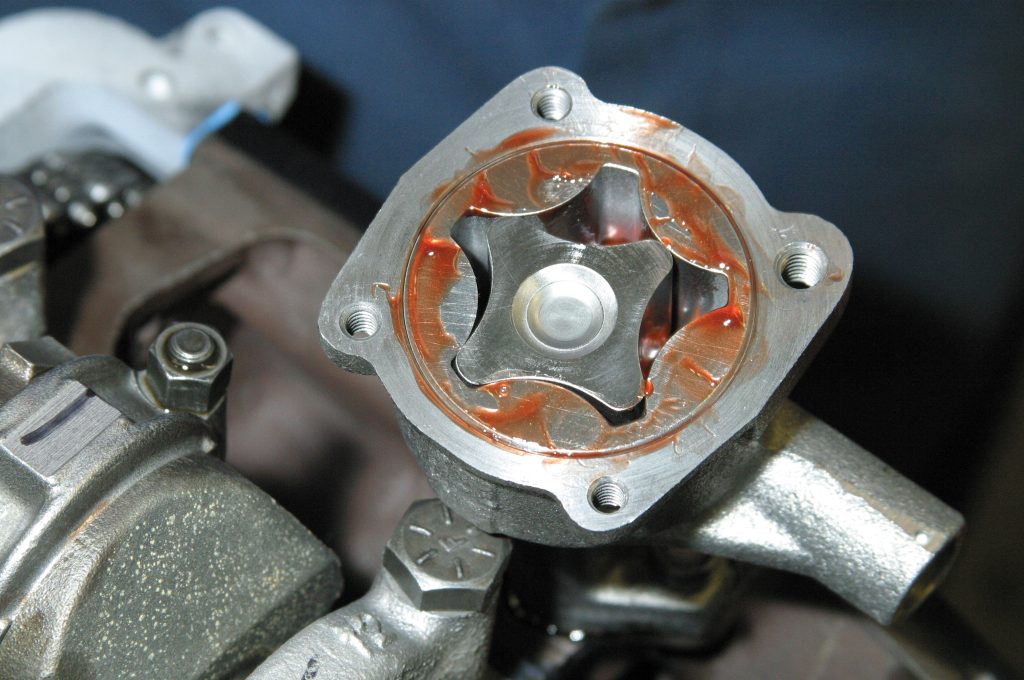

Oil pumps should always be checked right out of the box. Check rotor clearances, side play, and the relief valve for freedom of movement. Then, fill the pump cavity with engine assembly lube to ensure a good wet start-up. Image/Jim Smart

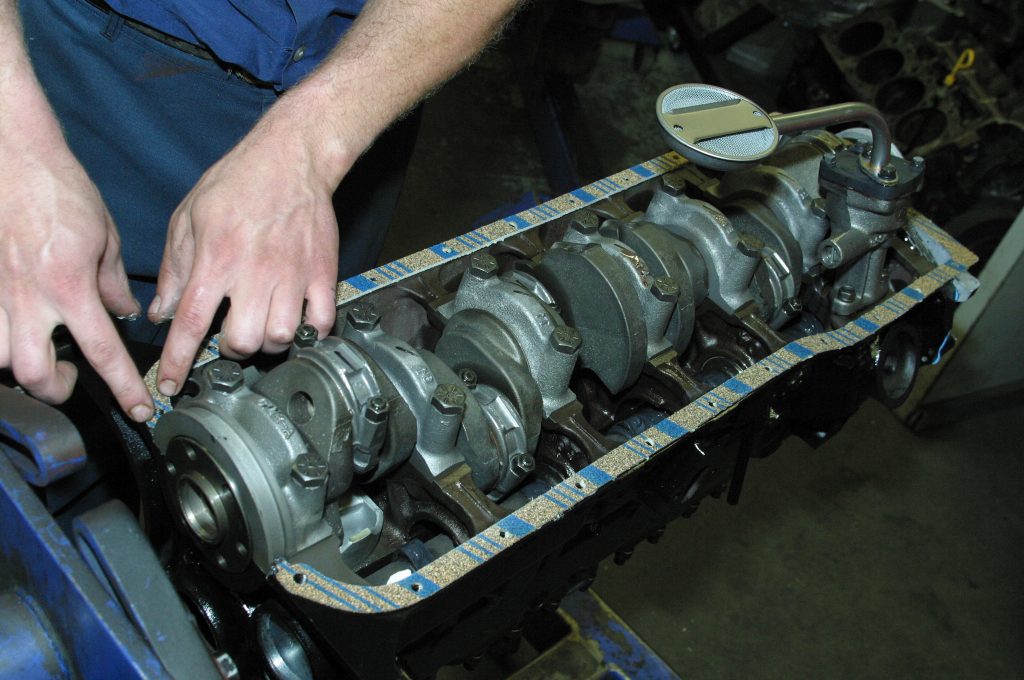

Oil pans leaks because we get sloppy and in a hurry. Take your time and be methodical. Ensure the end seals are properly seated and secured with Permatex’s The Right Stuff. Apply a thin film of The Right Stuff between the gasket and block, but not the gasket and pan. We find builders apply too much sealer. Just a thin film will do. Image/Jim Smart
Before cylinder head installation, wipe deck and head surfaces. Ideally, you will use a tack cloth (antistatic) to catch debris. A tack cloth does a better job. Image/Jim Smart
Fel-Pro Print-O-Seal head gaskets from Summit do an excellent job and will outlast original copper head gaskets. Image/Jim Smart
You want to build the little Ford six for durability, which means all valves must be replaced and hardened steel exhaust valve seats installed. The original exhaust valve seat is the cast iron surface the valve contacts. That iron seat is cut out and a steel seat installed. Image/Jim Smart
Once the valve guides have been replaced or bronze lined, it’s time to install new exhaust valve seats. Image/Jim Smart
The cylinder head, like the block, is surfaced to get the deck surface true. Expect to see an increase in compression from this. Image/Jim Smart

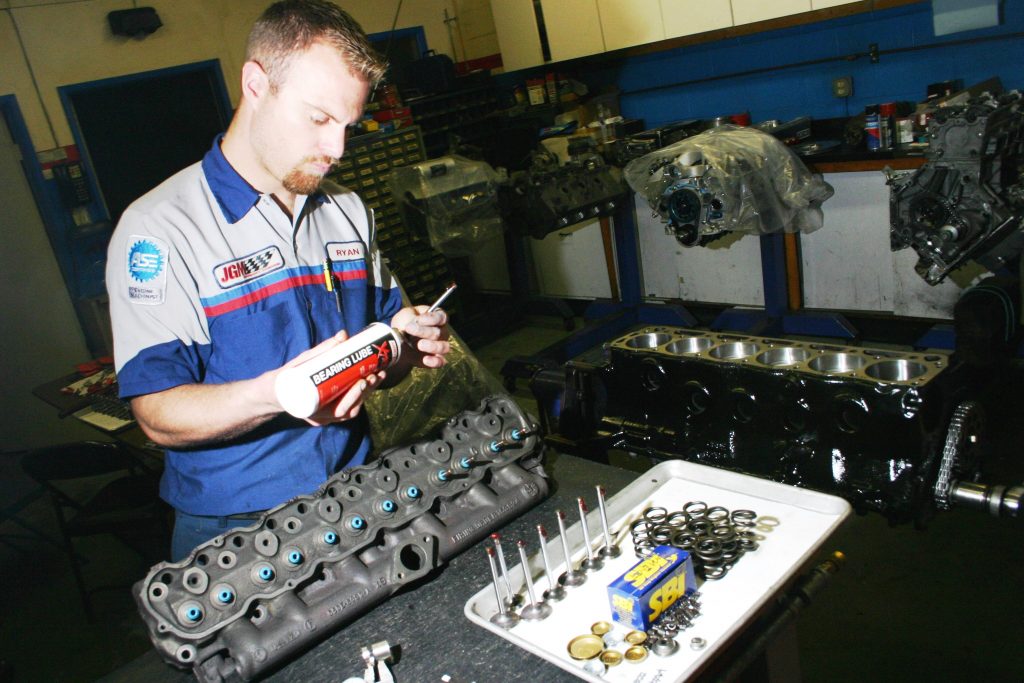

JGM uses Viton valve seals on most of its builds. The old rubber umbrella seals don’t cut the mustard anymore. Valve guides must be machined to accommodate the Viton seals. Viton seals control oil flow to the valve guides but keep excess oil out. Shaft-mounted rocker arms get their oil from this oil galley (arrow), which is the same way Ford FE Series big-blocks get valvetrain lubrication. Image/Jim Smart
Valve stems get assembly lube. Valve spring height and seat pressure are checked. Image/Jim Smart
The cylinder head is carefully seated in place. Hold bolts must be torque in proper order from the center out. Bolt torque is 45-55 ft/lbs, then, 55-65—and finally 65-75. Bolt threads must be lubricated prior to installation. Check final torque again. Image/Jim Smart

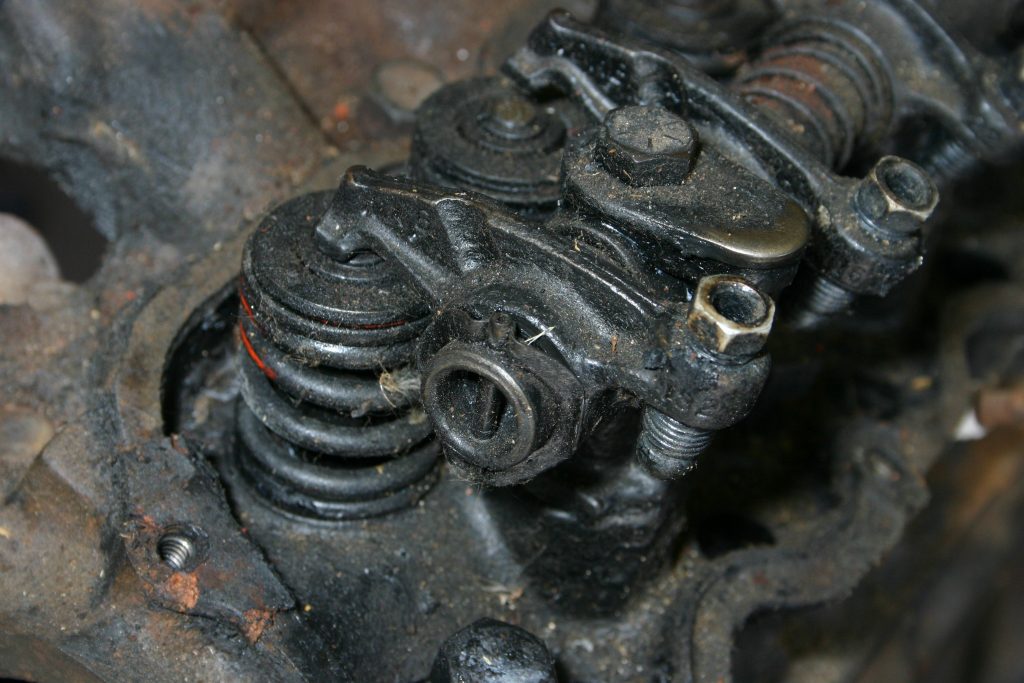

We were surprised to find adjustable rocker arms on a Ford six with hydraulic flat tappets. Valve adjustment is generally based on pushrod length. Image/Jim Smart

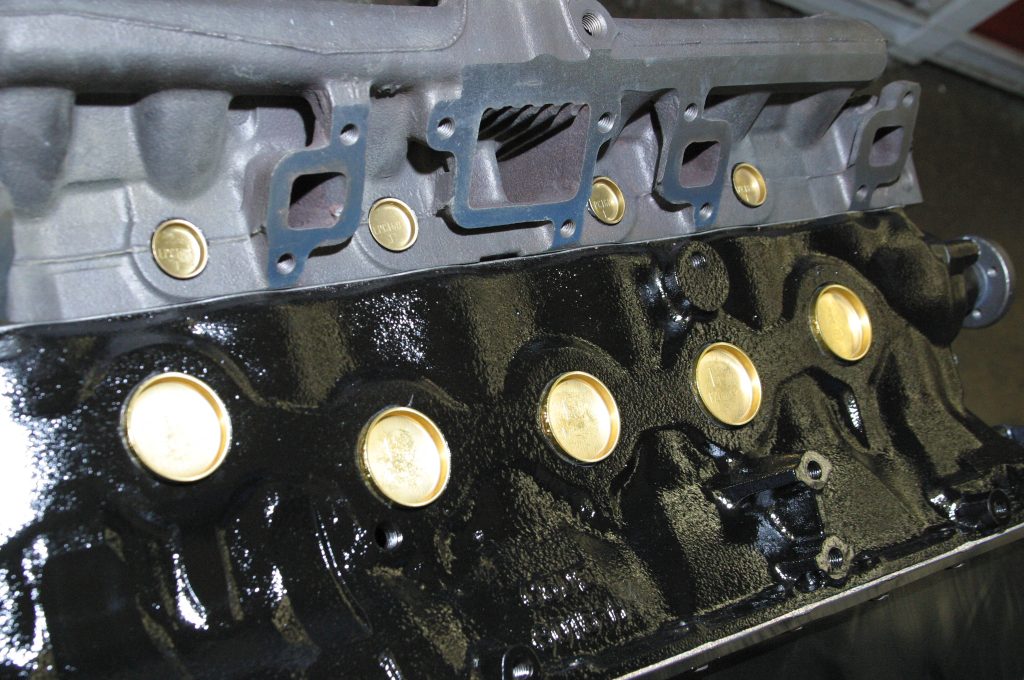

This is the block you want, with seven main bearings. Seven main bearing blocks have five freeze plugs. Image/Jim Smart
When you fire your 144/170/200/250 cubic-inch six for the first time, get the rpms up to 2500 and let it run at speed for at least 30 minutes to seat bearings and rings, and work-harden the cam lobes. Change oil at 1,000 miles and use synthetic. Image/Jim Smart
