LM4 5.3L Engine Upgrade Guide: Expert Advice for LM4 Mods to Maximize Performance


LM4 engine swap

(Image/R3Vlimited.com – @sgtskid)

[Editor’s Note: This LM4 engine upgrade guide is part of a series of LS engine upgrade guides assembled by a team of LS experts at Summit Racing that we’re sharing at OnAllCylinders. For a primer on the entire LS engine universe, read LS Engines 101: An Introductory Overview of the Gen III/IV LS Engine Family.]

The Gen. 3 aluminum block LM4 engine came in Chevy, GMC, Buick and even Isuzu SUVs from 2003-05.

It was known as the Vortec 5300 and made a little less power than its aluminum-block brother, the L33. This was due to the LM4’s smaller intake valve Cathedral port heads, lower compression, and a slightly smaller cam. With the exception of the block material, it had more in common with the iron-block LM7.

The LM4 was built during the transition between Gen. 3 and Gen. 4 truck engines. Because of this, the ’03 model had three different head bolt lengths, early-style cam housing bore and a return-style fuel system.

The ’04-05 engines had two head bolt lengths, Gen. 4-style cam housing bore and returnless fuel system.

The 2005 model was unique in that it had the beefier Gen. 4-style full-floating rods. If the engine was used in a 4WD SUV, the oil pan had a tunnel through the middle to accommodate the front axle.

If you are looking into an engine swap, it’s not a bad candidate because the oil pan can be easily switched out, but be aware that the blocks may or may not have the dipstick tube location drilled.  Sometimes it’s merely plugged, but it’s possible you’ll have to drill it yourself.

They can be found for less than $1,000, which is inexpensive for an aluminum block engine.

The cherry on top is that it isn’t saddled with Variable Valve Timing (VVT) or Active Fuel Management (AFM) found on some Gen. 4 engines. This lowers the cost of building it up.

[Every engine spec you’ll need can be found here: LM4 5.3L Vortec 5300 Engine Specs: Performance, Bore & Stroke, Cylinder Heads, Cam Specs & More.]

Intro to LM4 Engine Upgrades

Modifications usually start with a cold air intake and aftermarket exhaust. This will definitely free up a few horsepower and will give the little engine a big personality.

Trucks often come with mechanical fans that sap horsepower. An electric fan kit will free up that power.

These mods can be done in your garage, but the tune won’t be optimized.

We recommend talking to your local chassis dyno tuner to decide on a computer programmer.

Whether you’re towing on low-octane or springing for good fuel, a tuner can dial-in the ECM and take it to the next level. Raising the factory redline is a big part of this because it allows your vehicle to be in the meat of the powerband longer.

Torque limiting can be completely shut off, shift points can be raised, and it makes it easier to tune for a bigger cam and injectors later on.

Before beginning the tuning process, we recommend installing a colder thermostat to open up the tuning window.

Below are some more upgrades you can make to improve the performance of an LM4.

Upgrading the LM4 Engine Camshaft and Valvetrain

The factory cam is tiny and really holds the engine back.

It’s only 191 degrees @ .050 in. duration on the intake and roughly .460 in. lift.

An LS3 or LS9 cam makes good power, but not where you want it if you’re using the LM4 engine in a truck. What you need is a cam that delivers a gut-punch right when the converter hits. We recommend a dedicated truck cam.

If the engine is going in a lighter car with deep rear-end gears and a high stall converter, you can be more aggressive with duration.

What’s the difference?

To maximize torque in the mid-range in a truck cam, manufactures close the intake valve at about 35-40 degrees (@.050 in.) after bottom dead center and alter the intake valve opening to set the idle quality.

What if you already have a power adder?

Generally, supercharger cams and nitrous cams will have slightly more lobe separation and longer exhaust duration. Turbo cams reduce overlap with less exhaust duration split in relation to the intake.

The stock rockers are good up to 175 lbs. of seat pressure and 450 lbs. open. You will want to install a trunnion kit for added reliability.

Intake Duration (@ 0.050 in.)Horsepower at the wheels after bolt-onsIdle QualityNotes
191° (Stock)235-245 whpSmoothHeavy drivetrain.
210°+50 hpSlightly noticeableGood with auto and stock converter.
215° - 225°+75 hpSteady lopeConverter recommended. Still can drive daily.
225° - 230°+100 hpLopeyHeads and intake good for another 50+ hp.

Drop-in .500-in. lift cams are popular, but LS6 springs allow you to run .550-in. lift and extend the rpm range. Spring life isn’t a problem because trucks generally don’t spend a lot of time at high rpm. Beyond that, .575 to .600 in. isn’t a problem with dual valve springs.

The stock rockers are good up to 175 lbs. of seat pressure and 450 lbs. open. You will want to install a trunnion kit for added reliability.

There are a few other parts needed for a LM4 cam swap such as an LS2 timing chain, LS7 spec lifters, LS2 timing chain damper and thick-wall chromoly pushrods.

Upgrading the LM4 Engine Fuel System and Tuning

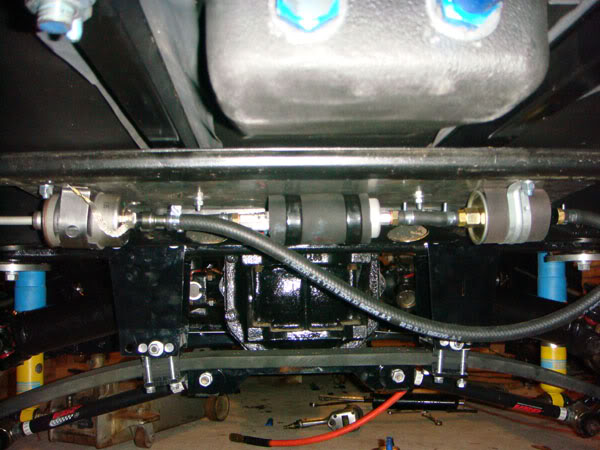

LM4 fuel system - ls1tech
