Intercooler Guide (Part 1): Air-to-Air vs. Liquid-to-Air Intercoolers–and Which is Right for You

Turbochargers are somewhat of a glamour product.

They make big power and, along with superchargers and nitrous, are considered part of the holy triumvirate of automotive power adders. Turbos are not only common aftermarket parts, they’re also trusted pieces in many production engines, including today’s increasingly popular diesel engines.

The intercooler is an essential part of the turbocharger setup.

An intercooler is tasked with cooling the compressed intake charge from the turbocharger before it enters the intake manifold. It acts essentially as a heat exchanger, transferring heat as air passes through its external fins. Consequently, the temperature of the air exiting the intercooler is reduced. The colder (and more importantly, denser) intake charge leads to better combustion, more power, greater efficiency, and less chance of engine-harming detonation.

Detonation occurs when a combustion process spontaneously takes place after the normal combustion caused by the spark plug. It is far more common with high intake temperatures and can cause catastrophic engine failure in some cases. By cooling the intake air with the right intercooler, we can reduce the chances of detonation.

With that said, it’s easy to see why the intercooler is important.

In conjunction with Mishimoto Engineering, we’ve put together a quick guide to intercoolers, so you can choose the right one for your turbo needs. There are basically two types of intercoolers: air-to-air and liquid-to-air.

Air-to-Air Intercoolers


(image courtesy of Mishimoto Engineering)

The air-to-air intercooler probably comes to mind most often when talking about intercoolers. This is the intercooler you’ll easily notice at car shows because it is often visible from outside the vehicle. An air-to-air intercooler relies on airflow through its core to cool temperatures. That’s why these intercoolers are mounted just within the front bumper.

In general, air-to-air intercoolers are efficient. However, since this type of intercooler relies on airflow from vehicle speed to create a cooling effect, it can be prone to heat soak at idle when then vehicle isn’t moving. According to Mishimoto, this is rarely an issue with front-mount setups; however, a unit contained deeper within the engine bay can overheat at idle.

Overall, the air-to-air intercooler is the most popular intercooler style and provides the best bang-for-buck.

Liquid-to-Air Intercoolers

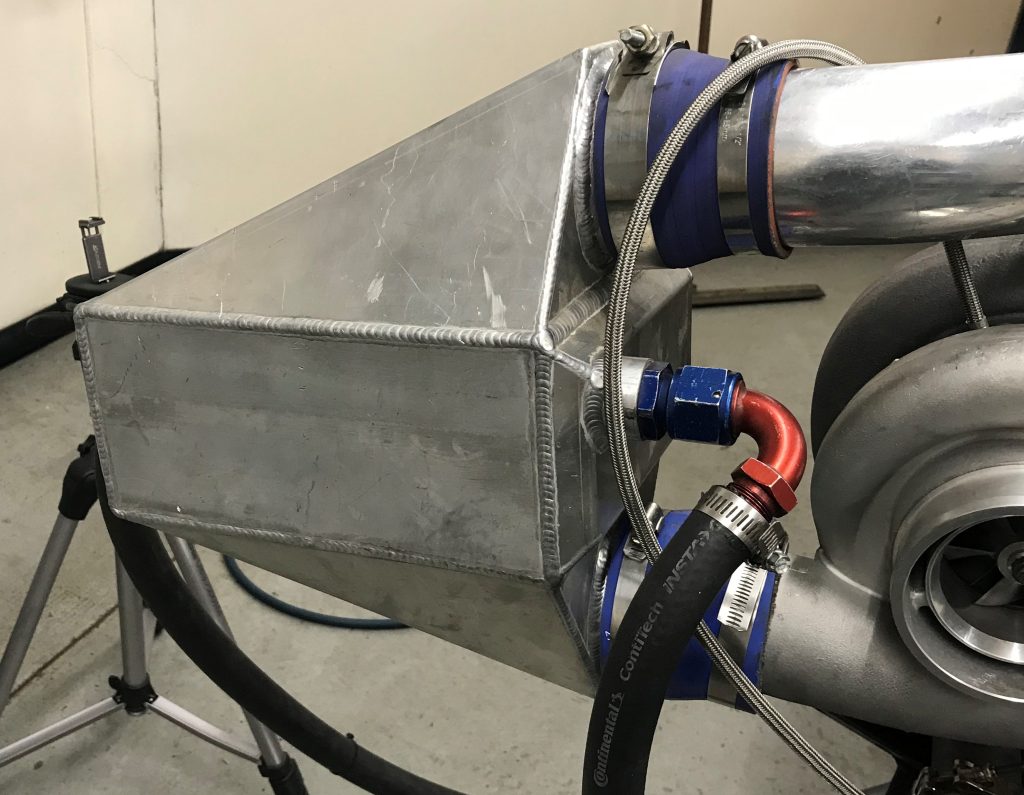

(image courtesy of

The liquid-to-air intercooler is more complex than its air-to-air counterpart.

As the name suggests, the liquid-to-air intercooler uses engine coolant to transfer heat from the air passing through it. In this design, the air and coolant do not make direct contact as they are directed through different passages. The coolant is pumped through the channels and tubes attached to the fins in the heat exchanger. Air flows through the fins, which allows the transfer of heat between the air and coolant.

This design is extremely efficient and is now used on numerous OEM vehicles, including the 6.7L Powerstroke and BMW S55B30. Because of its high efficiency, you’ll most likely find liquid-to-air intercoolers in very high-powered vehicles that make a lot of heat. The downside to this design is the complexity of the setup. It requires coolant lines and fittings, a coolant pump, and sometimes even an additional radiator.

Which Should You Choose?

For most vehicles, an air-to-air intercooler is efficient enough for street and track use. Mishimoto offers these guidelines for choosing between the two styles:


In part 2 of our Intercooler Guide series, we’ll look at the different types of intercooler construction, including core design and end tanks.
