The cost of even mild high performance engines is escalating—along with everything else in this post-Covid world. Even the traditional small block Chevy crate engines are no longer as kind to your bank statement as they once were. But that doesn’t mean you have to give up on the idea of fresh power for your next hot rod. This just presents the opportunity to build it yourself.

To set the example, we’re going to resurrect a simple 350ci small block Chevy and run through all the classic procedures of boring and torque plate honing a block for a set of stock cast aluminum pistons. Unlike the typical magazine builds that ignore the reality of life’s other demands on your weekly paycheck, our focus will be on keeping the cost as affordable as possible without short-cutting quality. This is not a race engine. It doesn’t even pretend to be a race engine. Our goal is to build a simple and efficient pump gas small block Chevy enhanced with a few performance touches to make a little more power than a traditional 290hp Chevy crate engine.

Crate Engine vs. Building It Yourself

In the time before the pandemic, Summit Racing carried a very affordable and attractive brand new, two-piece rear main seal 350ci crate engine first under the Targetmaster name that later became the Goodwrench engine. Due to the cost of replacing the old tooling, this engine is no longer available.

But we still needed an engine. This drove us to compile a complete parts list after which we realized we could build a comparable engine with better heads and camshaft for a competitive price.

We discovered that combining a set of Summit Racing Vortec iron heads with a Summit Racing flat tappet cam would dramatically improve this engine’s torque and horsepower but not drastically increase the cost.

We’ll be honest. It’s much easier just to lay down the cash for a completely assembled engine than it is to build it yourself. But we think this engine has the potential to make more power than the Goodwrench crate engine because of the better heads, cam, and most importantly because our engine will enjoy 1.5 points higher compression at 9.9:1.

Plus we have the knowledge that we built this engine with our own two hands. That’s worth something.

Our plan includes all the parts necessary for a complete long block along with a dual plane intake, HEI distributor, spark plugs, wires, oil, filter, and everything except a carburetor and exhaust to complete the engine. With all these parts the price comes in slightly over $3,400 in 2022 dollars. To be fair, Summit Racing does sell 355ci crate engines that make similar power, albeit at higher price tags (which offsets the effort of building an engine).

But given the options, we decided to build our own.

Starting the Engine Build

We began with a 1990 350 one-piece rear main seal short block that we bought from a friend for $200. We chose this engine because of the better one-piece rear main seal and one-piece oil pan gasket that will minimize oil leaks. Plus, at a later date we can update this engine to a roller cam since the block is machined to accept a factory style hydraulic roller cam which is far less expensive than retro-fitting a two-piece rear main seal block.

Our engine was in decent shape and we were tempted to re-use the rod and main bearings because they looked very good. Disassembly went easily and we made a point to number stamp both sides of the rods as well as numbering the main caps to ensure they did not get mixed up during re-assembly.

The crank measured a little more than 0.0005 inch smaller than the standard main and rod journal sizes which saved us some money by not grinding the crank. Our first step was to take the block to a local machine shop, Williams Machine in Lacona, Iowa to have it cleaned, bored, torque plate honed, and aligned honed the mains. Williams also installed the new ARP rod bolts, resized the big ends of the rods, pressed them on the pistons, and then installed the cam bearings. It’s also a good idea to balance the entire assembly since the new pistons are larger and heavier. We also included a new flexplate to the system so it could be accurately balanced since the stock offset weight (for the one-piece rear main seal flange) on these replacement flexplates tend to vary wildly.

There’s a complete parts list at the bottom of this article.

With all the parts returned from the machine shop, we laid all the parts on a bench just to organize everything. Our first step is always to pre-install the cam before any other parts. This is important because sometimes there can be a tight cam bearing that won’t allow the cam past the bearing. It’s better to know this before assembling the rotating assembly because it’s easier to access the offending cam bearing with an empty block.

This is also a good time to install the three press-in plugs in the front of the block that straddle the cam. If you forget these plugs, the engine will not produce any oil pressure. We also stake them in place with a chisel strike to ensure they don’t push out. The threaded rear galley plugs must also be installed and coated with thread sealer.

Next we checked the rods and main bearings for clearance because the rods had been resized and the block was align honed. We prefer to run our rod and main clearance on street small blocks as near to 0.0025-inch as possible. The bearings we chose are from Summit Racing and are the bi-metal design which means they are aluminum with a steel backing. These are stock replacement bearings that are somewhat harder than performance bearings. We chose the stock replacement versions to maintain the budget.

While the main bearings were available in 0.001 inch undersize, the bi-metal rod bearings are not. Our engine did not need undersize rod bearings, but they are available in 0.001 inch undersize from companies like Clevite, King, and Speed-Pro. While softer, they will work fine for a street engine and it’s always better to establish a proper clearance even if you have to use different bearings.

Several main bearings were closer to 0.0030 inch so we added a 0.001 inch undersize upper half shell that reduced the clearance to 0.0023 to 0.0028 inch, which is near ideal. The Number five main required using both halves of the 0.001 inch under main bearing to create a 0.0026 inch clearance. Often the thrust will have a slightly looser clearance to ensure the vertical thrust portion of the bearing is properly lubricated.

Assembling the Engine

Before we began the assembly, we performed a final wash of the block with laundry soap and brushes and immediately dried the block with high pressure air. Then we used white paper towels and Marvel Mystery Oil to clean the cylinders. We changed to fresh paper until the red oil stain on the towels remained red. This usually involves four or more passes to get each cylinder as clean as possible. We’ve tried other methods but Marvel Mystery Oil does a surprisingly better job than even lacquer thinner at removing cylinder wall honing residue.

We then installed the crankshaft and measured the thrust clearance to make sure it was within spec at 0.005 inch. In our case, we had almost zero clearance which required sanding the forward portion of the thrust bearing with a sheet of 400 grit wet and dry sandpaper lightly coated with Marvel Mystery oil on a flat glass surface. We combined the two thrust halves with a large hose clamp and lightly sand the forward facing portion of the bearing until we achieved a proper clearance. We then thoroughly cleaned the thrust bearings before checking the endplay that produced 0.004 inch. One trick is to lightly tap the crankshaft from behind with a soft mallet to align the thrust bearings. This can improve the clearance slightly if the clearance is tight.

We loaded the pistons with the rings using a ring expander instead of the spiral technique. We oriented the rings as indicated on the instructions with the top and second rings opposite each other on the piston. It’s not as critical where the two top ring gaps are placed as long as they are 180 degrees opposite each other. Our rings were pre-gapped so we did not have to file them for clearance.

With all the pistons in place, we also decided to check deck height to finalize our static compression ratio. The below deck clearances varied a few thousandths but averaged 0.025 inch. This was more than we had planned and also lowered the static compression ratio far below our desired to 9.7:1. We could have had the block decked another 0.015 inch but that would have increased our cost so we decided we’d leave it as it is. To compensate, we substituted a thinner steel shim gasket for the composition version.

This deeper deck height allowed us to add a metal shim gasket’s 0.016 inch to the 0.025 inch of piston deck clearance for a total of 0.041 inch. This actually pushed our compression ratio up to 9.9:1.

This will certainly make our small block a little more power, improve fuel mileage slightly, and make it snappier with the throttle.

With the pistons in place, we next moved to installing the Cloyes double roller timing set. This timing set offers three different keyways on the crank gear to advance or retard the cam timing. We chose the zero setting and then ran through the cam degreeing process. We won’t go into how to do that here but we discovered the cam positioned at a 106 degrees After Top Dead Center (ATDC) for the intake centerline. The cam card calls for 107 degrees, so we decided to leave this since this is within one degree of the spec.

With the cam properly timed, we added thread locking compound to the cam bolts, torqued them in place and we were about to install the front timing cover when we discovered our gasket set did not include a timing cover gasket. This is because some of the later one-piece rear main seal engines came with plastic timing covers that must be replaced. So we had to purchase a separate timing cover gasket before we could finalize the cover install.

Now we could turn our attention to the oil pump. You may notice that we selected a standard pressure, standard volume oil pump since most street small blocks do not need either high oil pressure or volume. We did check the pickup position relative to the oil pan and found it a touch higher at 1/2 inch compared to the 3/8 inch spec. We also tack-welded the pickup to the pump to ensure it does not vibrate out and leave us stranded with no oil pressure.

All one-piece rear main seal small blocks also use a one-piece oil pan gasket that makes the installation much easier compared to the traditional four-piece sets. This completed our short block assembly for our budget small block.

Almost Finished…

The Part II story will finalize the assembly with the cylinder heads and the remainder of the upper end and fire this rascal up on our Summit Racing engine test stand. We’re looking forward to that day when we can make a little noise to prove our assembly technique and break-in procedure.

We’ll save that bit of excitement for Part II.

We started with this very used one-piece rear main seal 350ci small block Chevy from a 1990 Chevy Suburban that was leaking oil on the floor of our friend Bill Irwin’s shop. Other than a blown head gasket, a thick layer of sludge in the pan, and a loose timing chain, the engine was in decent shape considering its 160,000 miles of run time. (Image/Jeff Smith)

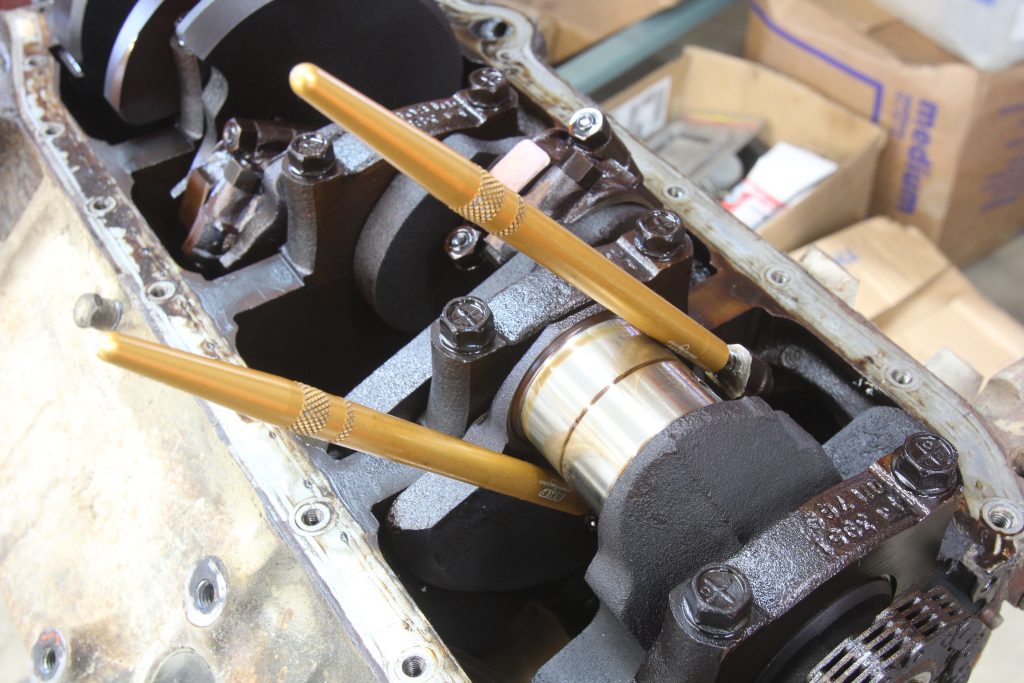

We used these aluminum guide pins from ARP to protect the rod bolts coming off the crank from scratching the rod journals. Several companies offer small plastic boots that will slip over the rod bolts that will perform the same duty—check the parts list at the bottom of this post. (Image/Jeff Smith)

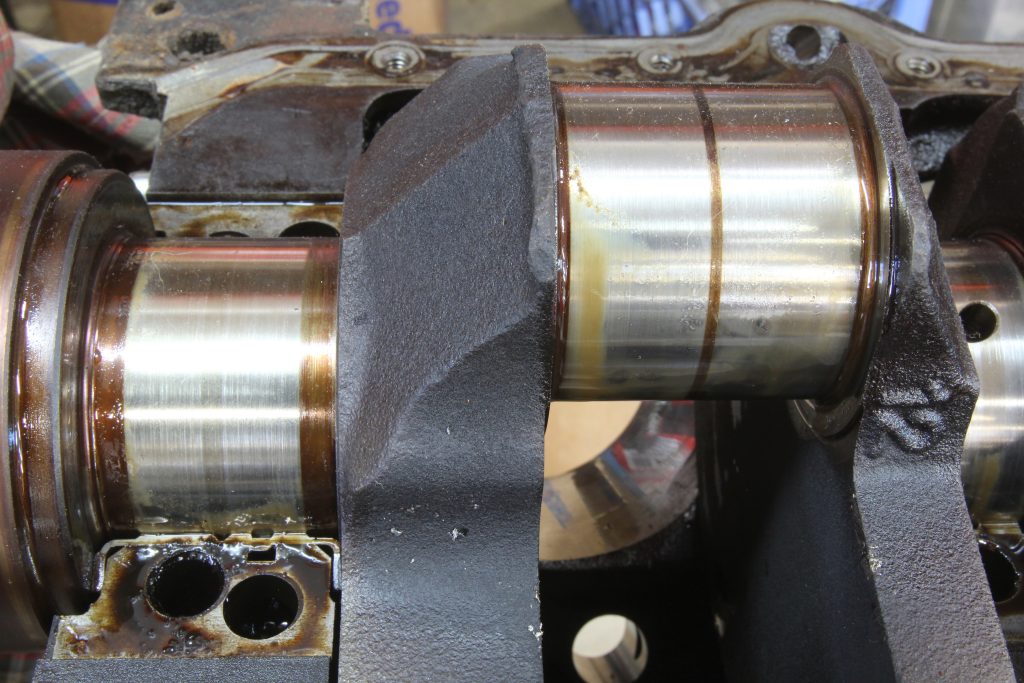

The used crank and bearings we removed from the engine looked good with no serious damage and the journals measured slightly more than 0.0005 inch undersized. We ordered both standard and 0.001 inch undersize main bearings and both part numbers are included in our parts list. (Image/Jeff Smith)

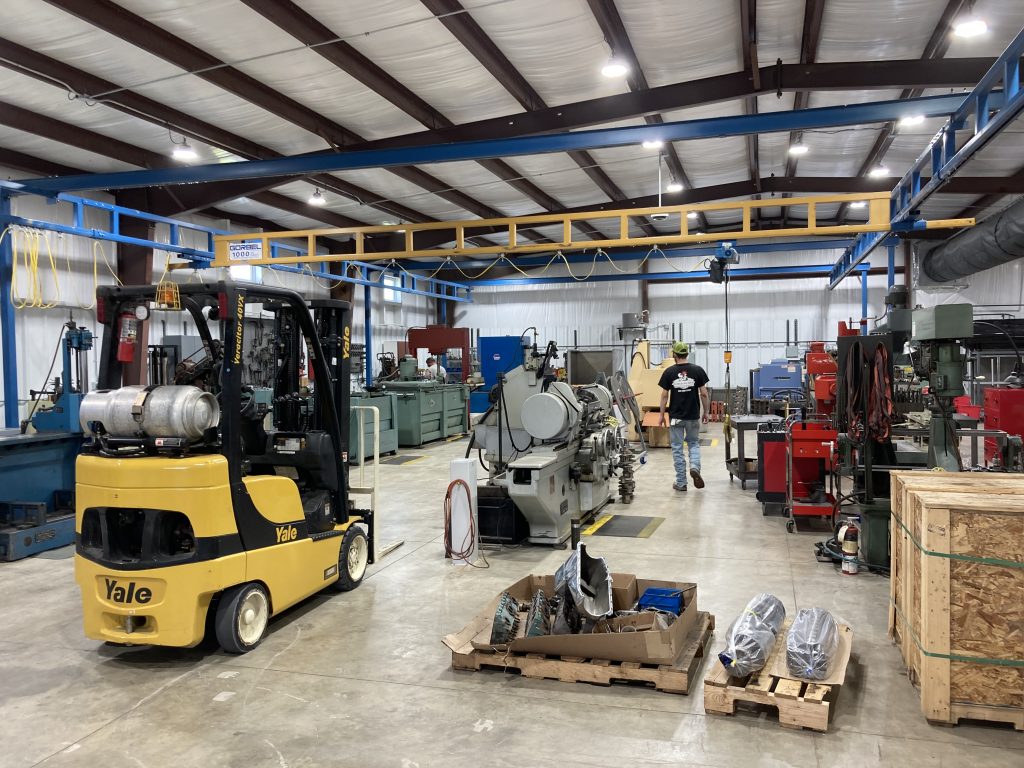

We took our small block to Williams Machine in Lacona, Iowa, and they cleaned, bored and torque plate honed the block and also rebuilt the stock rods with new ARP bolts and then pressed the rods on the pistons for us. (Image/Jeff Smith)
This is everything we ordered from Summit Racing to assemble our small block Chevy. There were a couple of pieces like the oil pan and valve covers that we could have re-used from the original engine to reduce the cost even further. All the part numbers are listed in the chart at the bottom of this article. (Image/Jeff Smith)
If the machine shop removes this oil passage plug to clean the block, make sure to install a new plug in its place. Otherwise this will create a massive internal oil leak and the engine will make no oil pressure. (Image/Jeff Smith)

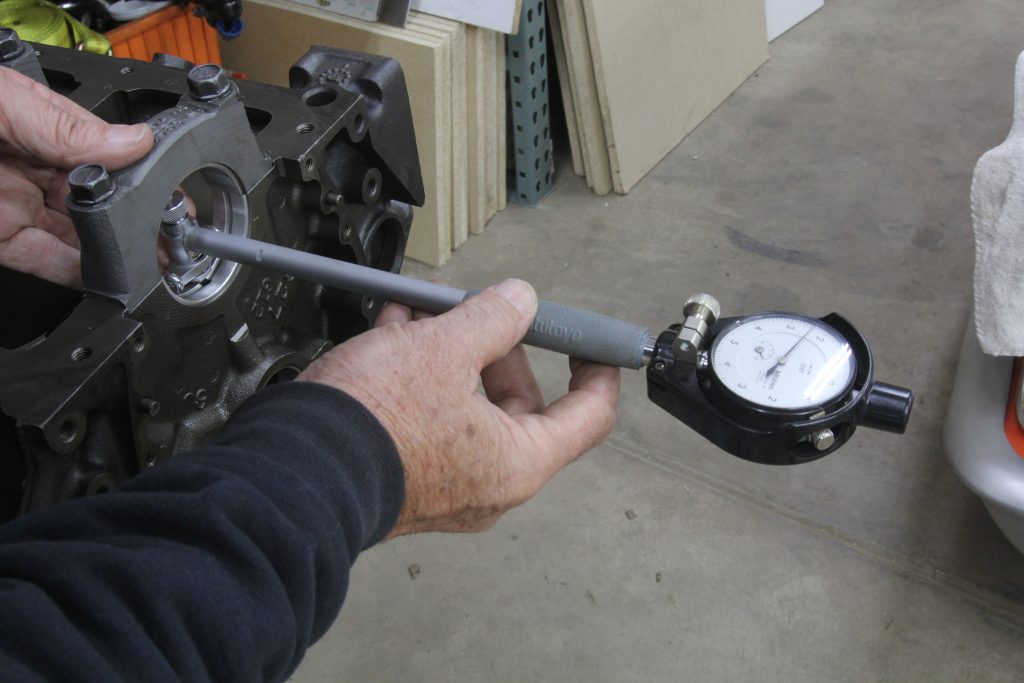

By adding a 0.001 inch half shell to three of the four main caps, we were able to get close to our main bearing clearance of 0.0025 inch. For Number Five thrust bearing, we had to use both 0.001 inch undersize shell halves to obtain a clearance of 0.0030 inch. (Image/Jeff Smith)
We had Williams install the cam bearings because we don’t have the proper tool. It’s always a good idea to make sure the cam will fit in the new bearings before installing the rotating assembly. If there’s a tight cam bearing it will be much easier to fix the problem before the rotating assembly is installed. (Image/Jeff Smith)

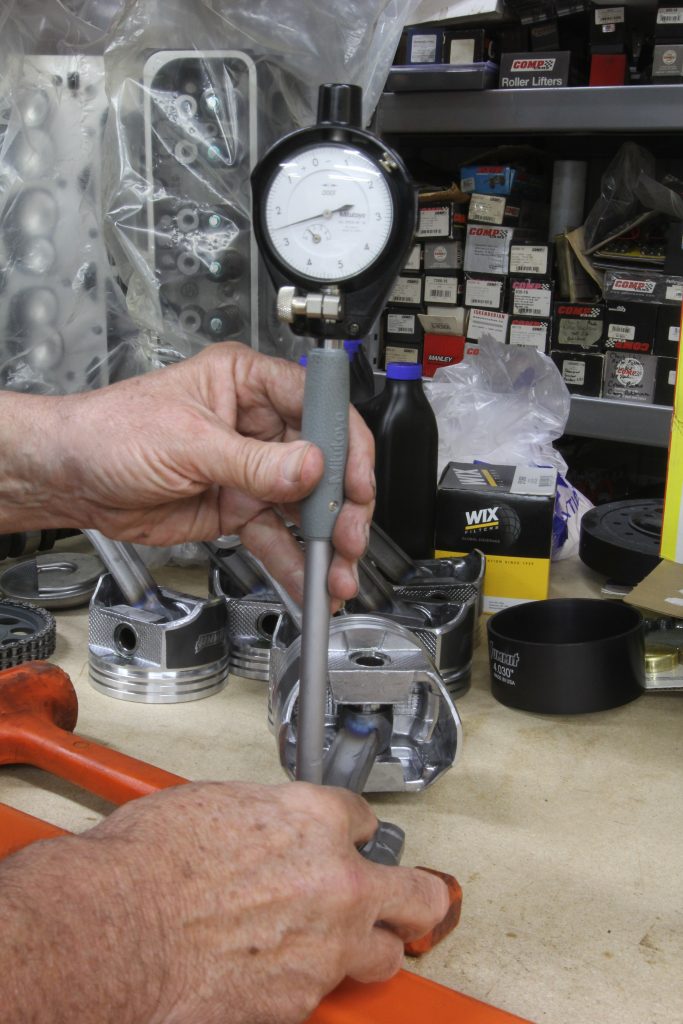

The rod bearings came in with a slightly wider clearance to around 0.0028 inch after polishing the crankshaft which also made it slightly undersize. Williams installed the new ARP rod bolts when the rods were resized. (Image/Jeff Smith)
After installing the crankshaft and the main caps but before we torqued the mains, we tapped the crankshaft forward to align the thrust bearing and then after torqueing the mains, checked the crank endplay and discovered zero endplay. We had to sand the leading side of the thrust bearing with oil on 400 grit wet/dry sandpaper for about 15 minutes to establish 0.004 inch of endplay. (Image/Jeff Smith)
We checked all the rings to ensure we had a proper ring gap. With cast iron rings, it’s important to install them with a ring installation tool to prevent possible damage from the spiral method. We placed the ends of the ring into the groove and then expand the tool until the ring slips over the piston. The oil rings can be installed by the spiral method. Always install the rings starting from the bottom to the top. (Image/Jeff Smith)
We used a Summit Racing tapered ring compressor to install the pistons because the tapered compressors are much easier to manage than the generic squeeze-the-handle ring compressors. With 5/64 inch rings, it will take some heavy hits from a dead blow hammer to install the pistons! (Image/Jeff Smith)
We use ARP rod bolts so that we can set the stretch of each bolt rather than rely on torque. The spec for these particular rod bolts is 0.0055 to 0.0060 inch and we used ARP’s new digital gauge. The more traditional dial indicator style also works well. (Image/Jeff Smith)
To ensure a proper head start on breaking-in the camshaft, we covered each lobe with the break-in lube supplied with the Summit Racing cam. We used engine oil for the cam journals. (Image/Jeff Smith)
We drove the crank gear on for the timing set before installing the crank in the engine. Installing the cam gear and the chain is as easy as aligning the marks. This Cloyes timing set has three crank positions to advance or retard but we chose the zero mark (0) on the crank gear. In most cases, this is where a stock rebuild would stop, but we wanted to make sure the cam was installed correctly so we spent the time to degree the cam as well. We discovered the cam was at 106 degrees, within one degree of the 107 degree intake centerline. Then we torqued the three cam bolts after applying a small dab of thread locker to the threads as insurance. (Image/Jeff Smith)
Once we pressed the pickup into the oil pump, we tack welded it to the pump body to ensure it would not vibrate loose. We also measured the depth of the pan and the height of the pickup so the pickup was within 3/8 to 1/2 inch of the bottom of the pan. (Image/Jeff Smith)
Brass freeze plugs are the best choice since they will not succumb to corrosion issues. It’s best to drive these plugs in from the edge rather than using a large socket inside the cup. Using the large socket tends to pull the sealing edges inward which can allow the plug to potentially pop out. We used a length of steel plate to drive in the brass plugs after coating the plugs with a sealant to ensure they don’t leak. (Image/Jeff Smith)
We also installed a new one-piece rear main seal from the Mahle gasket set and then bolted the assembly over the end of the crank. (Image/Jeff Smith)
We positioned the one-piece pan gasket and dropped the new Summit Racing pan in place and with that we had our assembled short block. We’ll complete the assembly in Part II where we’ll add the Summit Racing Vortec heads, a dual plane intake, and the remaining pieces. Then we’ll also cover how to successfully break-in the new cam. (Image/Jeff Smith)

***

Summit Racing Classic Cam Specs (SUM-K1103)

Advertised
Duration
Duration
at 0.050"
LiftLobe Sep. Angle
(LSA)
Intake
Centerline
Intake288°214°0.444"112°107°
Exhaust298°224°0.466"

***

Jeff Smith's 355 SBC Budget Build Engine Specs
Compression Ratio9.85:1
Bore4.030"
Stroke3.480"
Combustion Chamber Volume67cc
Deck Height0.025"
Piston Valve Reliefs6cc
Head Gasket Thickness0.016"

***

Jeff Smith's 355 SBC Budget Build Recommended Clearances
Main Bearings0.0025" (optimal)
Rod Bearings0.0022" to 0.0025" (optimal)
Crank Endplay0.003" to 0.011"
Top Ring Gap*0.0045" per inch of bore minimum (0.018")
2nd Ring Gap*0.0050" per inch of bore minimum (0.020")
Piston-to-Head0.035" to 0.040" (minimum)
Piston-to-Valve0.100" (minimum) intake & exhaust
Oil Pickup to Pan0.375" to 0.400"
*These values are for normally aspirated engines on gasoline with cast pistons.

***

Jeff Smith's 355 SBC Budget Build Parts List
Engine Short Block
Summit Racing Coated Hypereutectic Pistons, 4.030" BoreSUM-17351C-30
Summit Racing Piston Ring Set, 5/64"SUM-133-M139-30
Summit Racing Main Bearings (Standard)SUM-172000
Summit Racing Main Bearings (Undersize, 0.001")SUM-172001
Summit Racing Connecting Rod BearingsSUM-171000
Dura-Bond Standard Cam BearingsDUR-CH-8
Summit Racing Oil Pump (Standard Volume/Pressure)SUM-121155SV
Melling Oil Pump Pickup/Screen AssemblyMEL-55-S1
ARP High Performance Series Connecting Rod Bolt KitARP-134-6003
Summit Racing Classic Cam and Lifter KitSUM-K1103
Cloyes Heavy-Duty Timing SetCLO-C-3023X
Fel-Pro Timing Cover GasketFEL-TCS51241
Summit Racing Freeze Plug KitSUM-G1581
Summit Racing Dowel Pin KitSUM-150122
Dorman Harmonic BalancerRNB-594-121
Summit Racing Harmonic Balancer BoltSUM-G1677
Summit Racing Stock Replacement Oil PanSUM-G3503X
Engine Top End
Summit Racing Vortec Cylinder Head (x2)SUM-151124
Summit Racing Chromoly PushrodsSUM-1457800
Mahle Original Engine Gasket SetMAH-95-3488
Summit Racing Stage 1 Intake ManifoldSUM-226018
Melling Rocker Arm (x16)MEL-MRK-651
WIX Oil FilterWIX-51069
Summit Racing ZDDP Performance Motor OilSUM-1-SAE30
Autolite Copper Core Spark Plug (x8)ATL-605
Summit Racing Blueprinted HEI DistributorSUM-850001-1
Summit Racing 8.5mm Ignition Wire SetSUM-881020
Summit Racing Valve CoversSUM-G3319B
Special Engine Assembly Tools
Clevite Rod Bolt SleevesCLE-2800B1
Summit Racing Cam Degree WheelSUM-G1057-16
