L76 6.0L Truck Engine Upgrade Guide: Expert Advice for L76 Mods to Maximize Performance



L76 Vortec Max truck engine

[Editor’s Note: This L76 truck engine upgrade guide is part of a series of LS engine upgrade guides assembled by a team of LS experts at Summit Racing that we are sharing at OnAllCylinders. For a primer on the entire LS engine universe, read LS Engines 101: An Introductory Overview of the Gen III/IV LS Engine Family.]

Intro to L76 Truck Engines

General Motors put the L76 in both cars and trucks and the differences were plenty despite sharing the same engine VIN code Y.

This upgrade guide is for the 6.0L L76 Vortec Max truck engine, specifically.

The L76 is a Gen. IV engine based off the LS2, which was also produced both as a car engine and a truck engine. came in Chevy and GMC trucks and full-size SUVs from 2007-09, and was equipped with a truck-specific accessory drive.

The L76 truck engine makes 376 horsepower and 375 foot-pounds of torque right from the factory on 87 octane fuel, which is rated at six more horsepower than the car version of the L76 used in the Pontiac G8 GT.

Why?

Despite lower compression and a smaller cam, the L76 truck engine’s long runner intake gave it an edge over the car version.

It’s the only 6.0L truck engine in the LS engine family that came with the combination of LS3-type rectangle-port heads, VVT, AFM, and an aluminum engine block.

Although not as strong as it’s iron block cousins under big boost, it’s 110 lb. lighter and shares the same rotating assembly

[Every engine spec you’ll need can be found here: L76 Truck Engine Specs: Performance, Bore & Stroke, Cylinder Heads, Cam Specs & More.]

How to Get More Power from Your L76 Truck Engine (Bolt-Ons)

For many people, upgrading an L76 starts with adding a cold air intake and aftermarket exhaust. This will definitely free up a few horsepower and the V8 burble will make your ride the center of attention at a stop light.

Trucks often come with mechanical fans that sap horsepower. An electric fan kit will free up that power.

These mods can be done in your garage, but the tune won’t be optimized.

We recommend that you talk to your local chassis dyno tuner and decide on a computer programmer.

Whether you’re towing on low-octane or springing for good fuel, a tuner can dial the ECM and take it to the next level. Raising the factory redline is a big part of this because it allows your vehicle to be in the meat of the powerband longer.

Torque limiting can be completely shut off, shift points can be raised and it makes it easier to tune for a bigger cam and injectors later on. Before beginning the tuning process, we recommend installing a colder thermostat to open up the L76 tuning window.

Below are some more upgrades you can make to improve the performance of an L76 engine.

Upgrading the L76 Truck Camshaft and Valvetrain

L76 rocker arms - ls1tech

(Image/LS1Tech)

VVT is great in a street vehicle if you install a VVT cam and phaser-limiter along with a tune.

Properly done, the right cam swap will make more power and torque than a stock 6.2L. If you don’t want to mess with it, you can easily convert to a standard non-VVT one- or three-bolt cam.

[Read LS Tech: How to Delete Variable Valve Timing (VVT) on an LS Engine for more info and part numbers.]

As the engines get older, the AFM lifters can get stuck in the collapsed position. Your best bet is to use a disabler or do an AFM delete kit if gas mileage isn’t absolutely critical. The delete kit is more involved and entails pulling the intake manifold, valley cover, and heads to access the lifters and trays, but there are extra dividends you’ll find by reading this:

[Read LS Tech: How to Delete or Disable Active Fuel Management (AFM) on GM Engines for more info and part numbers.]

L76 with AFM hardware

L76 engine with AFM hardware intact. (Image/LS2.com – HSV-GTS-300)

Now let’s talk about a cam swap.

If the engine is still being used in a truck, you’re probably thinking you don’t want to sacrifice low-end torque—and you’d be right.

An LS3 or LS9 cam makes good power, but not where you want it. What you need is a cam that delivers a gut-punch right when the converter hits. We recommend a dedicated truck cam.

If the engine is going in a lighter car with deep rear-end gears and a high stall converter, you can be more aggressive with duration.

What’s the difference?

To maximize torque in the mid-range in a truck cam, aftermarket manufactures close the intake valve at about 35-40 degrees (@.050 in.) after bottom dead center and alter the intake valve opening point to set the idle quality.

The 6.0L engine can take a little more cam than a 5.3L and still idle well.

What if you already have a power adder?

Generally, supercharger cams and nitrous cams will have slightly more lobe separation and longer exhaust duration. Turbo cams reduce overlap with less exhaust duration split in relation to the intake.

Intake Duration (@ 0.050 in.)Horsepower at the wheels after bolt-onsIdle QualityNotes
196° (Stock)295-315 whpSmoothHeavy drivetrain.
215°+50 hpSlightly noticeableGood with auto and stock converter.
220° - 230°+75 hpSteady lopeConverter recommended. Still can drive daily.
230° - 240°+100 hpLopeyFly-cutting the pistons may be required. Heads and intake good for another 50+ hp.

Drop-in .500-in. lift cams are popular, but LS6 springs allow you to run .550-in. lift and extend the rpm range. Spring life isn’t a problem because trucks generally don’t spend a lot of time at high rpm. After all, a C5 Z06’s LS6 had .555-in. lift and will happily go 150,000+ miles with normal use. Beyond that, .575 to .600 in. isn’t a problem with dual valve springs.

The stock rockers are good up to 175 lbs. of seat pressure and 450 lbs. open. You will want to install a trunnion kit for added reliability. When you’re pulling the cam, switch out the spring-loaded timing chain tensioner for the more-reliable wedge-style (early) LS2 damper.

Here are a few parts commonly used for an L76 cam swap: LS2 timing chain, LS7 spec lifters, LS2 timing chain damper and thick-wall chromoly pushrods.

L76 Truck Power Adders

There’s a good chance that an L76 will get boost or a nitrous upgrade before seeing any serious cylinder head work.

But before we get into the power adders, there are a couple of things to address:

  • A 4-corner steam kit reduces hot spots that can cause the rings to butt and snap the piston’s ring lands.
  • Any power adders will put you well past the limitations of the fuel injectors. We’ve addressed those in the next section below on fuel system upgrades.

Okay, here’s the fun stuff:

  • nitrous oxide kit (at low settings) is great for street driving with stock internals. Up to a 200-shot is common. Keep in mind the tight piston ring gap is the limiting factor beyond that. If you’re wanting to get serious, a single-plane intake is less prone to break from a nitrous backfire. A plate system has better distribution than the original intake, but an eight-nozzle fogger system is even better. Running higher octane fuel is advised.
  • Truck engine bays make fitting turbos easy. Single turbo systems using turbo exhaust manifolds are an inexpensive way to make big power. If you’re running a single turbo, the T4 hot-side fits well, but the small turbine diameters limit exhaust flow. The 650 whp begins to feel like 400 did in a hurry, so take this into consideration. V-band style exhaust housings are available with larger turbines and make plumbing easier. Although twins are a little more expensive out of the box, you’ll have more room to grow.
  • Roots-style supercharger is dependable and makes great torque in the low- and mid-rpm range. It’s great for melting tires. An original 6.0L Vortec Max-powered truck is a rarity and owners usually turn them into hot rods and keep them for a long time. That being the case, a burly blower is a good investment.
  • centrifugal-style supercharger is lightweight and makes more power at high rpm. This is partially due to a larger intercooler mounted in front of the radiator. They don’t have quite the curb appeal of a Roots, and aren’t as common.

Upgrading the L76 Truck Fuel System and Tuning

We recommend looking at the injector’s part number before taking it to the tuner.

Flex-fuel engine injectors are a common upgrade, and good injector characterization numbers are available to maximize idle quality. If using the L94/L9H 54 lb. injector, a spacer will be required to fit the fuel rail.

Part NumberFlow @ 58 PSIConnectorLength (Inches between O-rings)Approx. WHP Limit
1258068130 lbs.Uscar EV61.730 in.400
1259451236 lbsUscar EV61.730 in.500
1261341250 lbs.Uscar EV61.730 in.675
1260974954 lbs.Uscar EV61.496 in.750

Many fuel system upgrade options are available including using the flex-fuel pumps which are good for another 100+ whp, but the modules (baskets) are different and it may be easier just to swap the entire tank. The factory pump is good to about 430 whp.

In-tank fuel pumps and external pumps are popular, but mild fabrication will be required. Other options to maintain or increase pump pressure include electronic voltage controllers and hotwire kits.

When running boost, you can use a water-methanol system to supply extra fuel and lower charge air temps.

One last note on tuning: The L76 has a 58x reluctor ring and isn’t compatible with the early LS ECMs. It’s best to keep the E38 ECM as it’s faster and tunes better with bigger cams.

Upgrading the L76 Truck Intake Manifold and Throttle Body

The intake is one of the best available from the factory with its Trailblazer SS based design and 4-bolt 87mm throttle body. The big plenum and long runners made better low-end torque and makes good power from idle through 6,000 rpm. It’s also very good for boost, but not good for engines built for big nitrous.

If you have the L76 in a vehicle with deep gears, big converter, cam, and the rev limit bumped, you may want to trade a little of that low-end torque for some top-end horsepower. If so, go with a cast tunnel ram. Gains of 35 whp are possible with the crossover point starting at around 5,500 rpm.

Want it all?

Go with the Edelbrock cross-ram. The low-end torque of the factory and the top-end of the tunnel ram. Dual throttle bodies to top it off.

In most cases a single plane is the wrong way to go, but begins to make sense if you’re running a lot of nitrous. It’s stronger and the cylinder to cylinder mixture distribution can be better.

Ask your tuner about going with a speed density tune. Doing so will remove the MAF restriction and will give you a bit more power.

Manifold StylePeak HorsepowerTorque
Single Plane+5 hpLosses everywhere below 6,000 rpm. *Only recommended for nitrous or boost.
Cast Tunnel Ram+30 hpSlightly lower below 3,000, equal at 4,500, and big gains beyond 5,500.
Cross Ram+35 hpMore power than anything else everywhere across the range.

[Trying to find an LS or LS-based Vortec engine for a swap or build? Check out Part 1 and Part 2 of our LS Spotter’s Guide.]

Upgrading L76 Truck Cylinder Heads

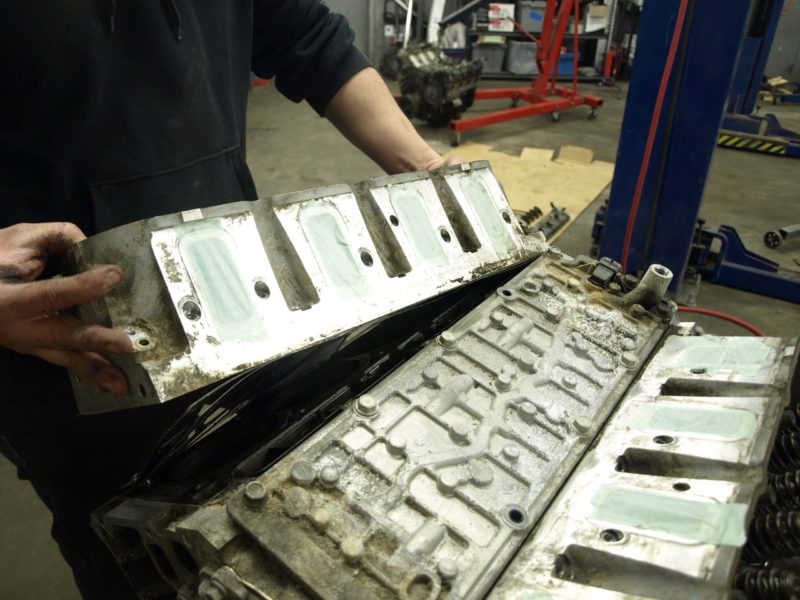

L76 cylinder head removal

(Image/Hot Rod)

The L76 cylinder heads are similar to the LS3 heads. They make decent power but were held back by valve shrouding on the small 4.000 in. bore.

  • The stock heads can be CNC-ported for more airflow. Flow numbers can be as high as 373 cfm at .700 lift. Lightweight hollow stem LS3 valves will drop right in. Between the light valves and better springs, the engines will pull cleanly to 7,000 rpm. Keep in mind, if you’re looking to boost to 800+ hp; a heavy duty aftermarket stainless intake valve is a bit tougher and won’t tulip as quickly from the heat. Milling the heads .030 will bump compression to 10.1:1 and will increase power everywhere. Keep in mind, piston to valve clearance will be tight with cams beyond 230 at .050 in. of intake duration.
  • A better option is aftermarket heads. They reduce down time, they’re all-new, and you can usually offset the added cost by selling your original heads. Valve angles are typically laid over to 13.5 degrees for increased piston to valve clearance. They flow better and the cross-sections are great for naturally aspirated or boosted engines. When comparing heads, look at the .400 in. lift numbers as a general indicator of how the heads will perform. With a medium-sized cam, 475+ whp naturally aspirated is common even with the heavier truck drivetrain.
  • Some hardcore enthusiasts who prefer a naturally aspirated engine will swap to an aftermarket cathedral head and F.A.S.T. LSXRT and go quicker with better average power, but it’s not the most cost-effective option.

Upgrading the L76 Truck Rotating Assembly

On the L76 truck engine, the pistons are the weak link and you probably already know someone who has popped one.

A set of forged pistons should be high on your priority list.

They have stronger wristpins, thicker ring lands, and the added valve reliefs allow you to run big cams. If you’re going over 800 hp, a set of .200 wall tool-steel pins is a good idea.

The L76’s Gen. 4 rods are stronger than the Gen. 3 rods and have full floating pins. They can handle about 800 hp and 7,000 rpm in boosted applications (at least for a while). They are likely to bend before they break when subjected to real track conditions.

If you’re getting forged pistons, upgrade to forged connecting rods at the same time. Big 7/16-inch rod bolts will go a long way to keep things together over 7,000 rpm.

The L76 crank was cast but strong. The main reason for a stroker crank is for added cubic inches. More power, more torque, and the extra cubic inches bring boost on more quickly, which means you can use bigger and more-efficient turbos.

Performance rotating assemblies are available in many combinations.

A couple notes of caution:

  • The 6.0L aluminum blocks had slightly longer cylinder sleeves than the iron blocks 5.500 in. vs. 5.430 on average). Much of the piston skirt drops out of the bottom of the cylinder at BDC. The best piston manufacturers have compensated for this by eliminating skirt taper until a point well above where it meets the bottom of the cylinder sleeve at BDC. Any skirt taper at this intersection acts as a razor blade and will wear out the piston quickly.
  • The blueprint deck height of the block is 9.240 in., but it’s common to find them in the 9.230-in. range. It’s best to measure deck height before ordering your rotating assembly. Thicker head gaskets or using an aftermarket 6.098-6.100 in. rod will ensure enough piston-to-head clearance.
Engine SizeBore Dia.Piston Comp. HeightStroke Rod Length / Wristpin
6.0L (364 c.i.d.)4.000 in.1.338 in.3.622 in.6.098 in. / 0.9431 in.
6.6L (403 c.i.d.)4.005 in.1.110 in.4.000 in.6.125 in. / 0.927 in.
6.7L (408 c.i.d.)4.030 in.1.110 in.4.000 in.6.125 in. / 0.927 in.

Upgrading the L76 Truck Engine Block

The L76 truck engine block has a 4.000-in. bore diameter and can be safely bored to 4.030 in.

However, if you’re running boost it’s better to keep the cylinder walls thick and start at .005 to .010 in. and go up in smaller increments as needed.

You can make 850 whp with a couple of simple upgrades like head studs and LS9 head gaskets. Race gas, E-85, or water-methanol injection is required.

It’s always worth it to invest in a chassis dyno tune to find fuel, spark, and other issues that are harder to spot at the track.

The factory main caps aren’t doweled. It’s better to reduce ignition timing and compensate with added boost to reduce the cylinder pressure spikes that can lift heads and cause the main caps to dance.

Main studs should be added anytime you’re this deep in the engine.

(Information for this article originally appeared in the “Upgrading the Gen. 4, 6.0L, Aluminum Block, LS Truck Engines” article at Summit Racing’s searchable database of FAQ tech infoGo there and search “LS engines” for a comprehensive collection of LS engine tech information.)
